Dump truck

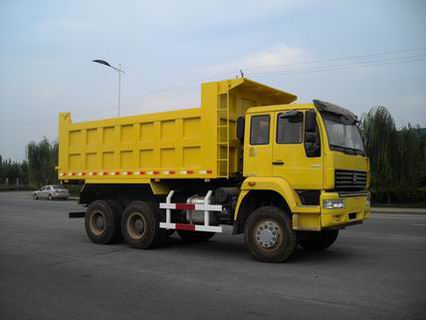

SINOTRUCK 290hp 6x4 dump truck model ZZ3251M3241C1
Truck ModelZZ3251M3241C1Dimension(L*W*H) (unloaded) (mm)7520*2490*3250Cargo body size (L*W*H) (mm)50
Parameters
| Item | Unit | Value |
|---|---|---|
| Truck Model | — | ZZ3251M3241C1 |
| Dimension(L*W*H) (unloaded) | mm | 7520*2490*3250 |
| Cargo body size (L*W*H) | mm | 5000*2300*1200, T middle lift, side 6mm bottom 8mm |
| Approaching angle/Departure angle (º) | — | 20.5/27 |
| Overhang(front/rear) | mm | 1320/1650 |
| Wheel base | mm | 3200+1350 |
| Max speed | km/h | 75 |
| Curb weight | kg | 12170 |
| Loading Weight(kg) | — | 12700 |
| Engine(Steyr technology, made in China) (Model) | — | WD615.92,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
| HorsePower, max(kw/rpm) | — | 300HP |
| Emission | — | EURO2 |
| Transmission (Model) | — | HW15710 |
| Brake system (Service brake) | — | Dual circuit compressed air brake |
| Parking brake | — | spring energy, compressed air operating on rear wheels |
| Steering system (Model) | — | JL80Z |
| Front axle | — | HF 7 drums |
| Rear axle | — | Pressed axle housing, central double reduction with differential locks between axles and wheels |
| Tyre | — | 12.00R20 |
