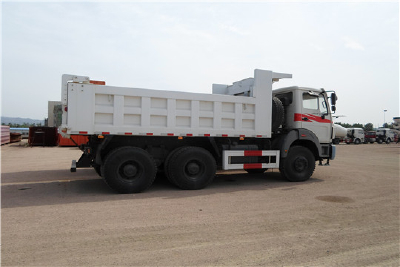

Beiben 276hp 6x4 Tipper Dump Truck model 3138K
Wheel base (mm) 3450+1450 Curb weight kg &n
Parameters
| Item | Unit | Value |
|---|---|---|
| Wheel base | mm | 3450+1450 |
| Curb weight kg | — | 12120 |
| Upper body Dimension(Lx W x H) | — | 5400×2300×1200 sand body |
| Engine (Model) | — | WD615.50,water-cooled,four strokes,6 cylinders straight in line,turbocharged |
| Power, max kw/rpm | — | 206/2200 |
| Max torque(Nm/rpm) | — | 1160/1100-1600 |
| Emission standard | — | EUROII |
| Fuel tanker capacity L | — | 300 |
| Clutch (Model) | — | GFX420, Single dry frictional disc,Hydraulic boosting |
| Gearbox | Model | 9JS180 (With 9 forward gears,1 reverse gear; With license from ZF Germany) |
| Brake system (Service brake) | — | Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake | — | Engine exhaust brake |
| Park brake | — | Potential springs pressing on middle and rear wheels |
| Steering system (Model) | — | ZF8098 |
| Frame of vehicle | — | Fish belly shape, variable width, variable section side beam structure |
| Front axle (Mercedes Benz Technology) | — | Double-shoe pneumatic brake, non-driving steering axle |
| Middle and Rear axle (Mercedes Benz Technology) | — | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
| Tyre | — | Radial 12.00R20 |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | — | 28V-35A |
| Starter | — | 5.4Kw/24V |
| Cab | — | Short cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.Can be tipped forwardly; Inner A/C |
