Dump truck

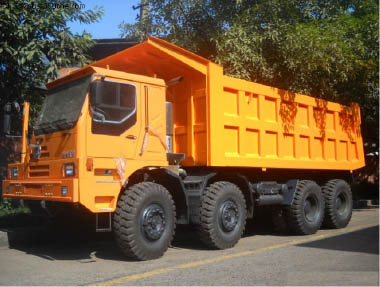

Beiben 320hp 8x4 Tipper Dump Truck model 2632KZ
Traction8x4Driving typeLHD (RHD is option)CabinNorth Benz, long c
Parameters
| Item | Unit | Value |
|---|---|---|
| Traction | — | 8x4 |
| Driving type | — | LHD (RHD is option) |
| Cabin | — | North Benz, long cabin |
| Vehicle Main Dimensions (LxWxH(mm)) | — | 9630 ×2500×3484 |
| Weightin KGS | — | 15300kg |
| Driving Speed(km/h) | — | 80 |
| Engine (Brand) | — | Wei chai |
| Gear box (Model) | — | 5S-112GP (ZF technology) |
| Clutch | — | Φ 430 Diaphragm type , |
| Steering | — | TAS85 |
| Tyre (Tyre) | — | 12.00-20 bias tyres |
| Fuel tank | — | 300L Iron Tank |
| Front axle | — | Mercedes Benz Technology , Double-shoe pneumatic brake, non-driving steering axle |
| Rear axle | — | Mercedes Benz Technology , Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
| Spring | — | 10/13 |
| G radability | — | 28% |
| Brake system (Service brake) | — | Brake gap can be adjusted automatically,double circulation air brake system |
| Electrical system (Battery) | — | 2X12V/135Ah |
| PTO | — | YES |
| Origin | — | P. |
| Inner size | mm | 6800X2300X1500 gravel body |
| Capacity | — | 23.46CBM |
| Thickness | — | floor 12 side & back 10 |
| Tipping type | — | Front tipping type ( with HYVA tipping system |
