Drill jumbos
Explore all products under this category.
Products in Drill jumbos
5 items

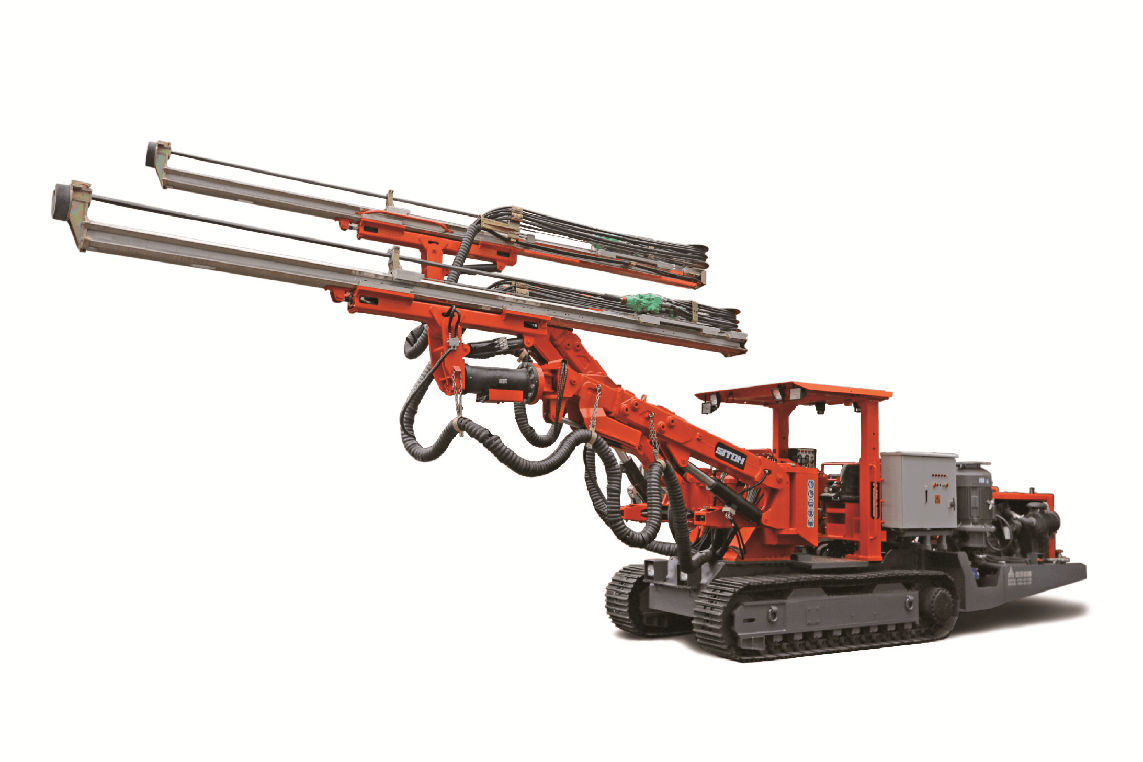

DJW2-50
- DJW2-50 — Overall Dimension
- 12500*2080*3045 mm
- DJW2-50 — Application Size
- 8350*6350 mm
- DJW2-50 — Drilling Depth
- 2795/3405/4015 mm
- DJW2-50 — Drilling Speed
- 0.8-2 m/min
- Main Motor Power
- 2*55KW
- DJW2-50 — Hydraulic Oil Tank
- 300 L

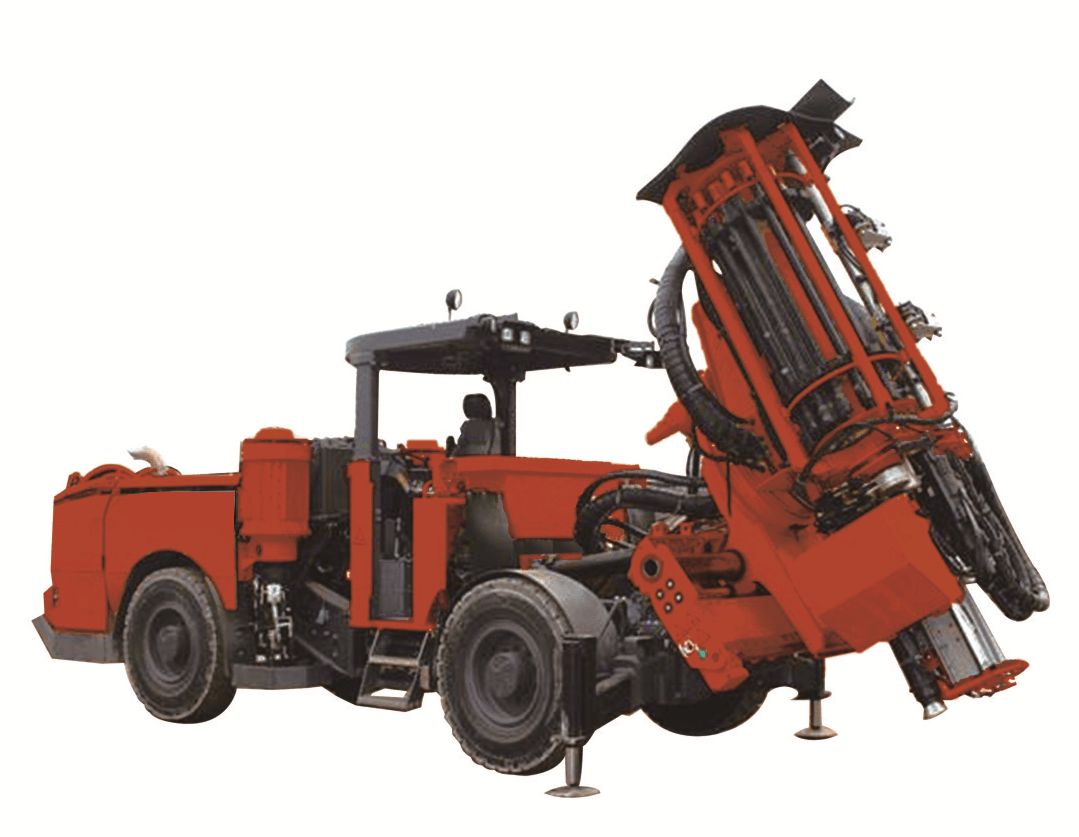

DL-4(for Mining)
- DL-4(for Mining) — Overall Dimension
- 9905*1990*3580 mm
- DL-4(for Mining) — Application Size
- 5940*5020 mm
- DL-4(for Mining) — Drilling Depth
- 40 m
- Drilling Rod Capacity
- 20+1
- DL-4(for Mining) — Drilling Speed
- 0.8-2 m/min
- Main Motor Power
- 55KW

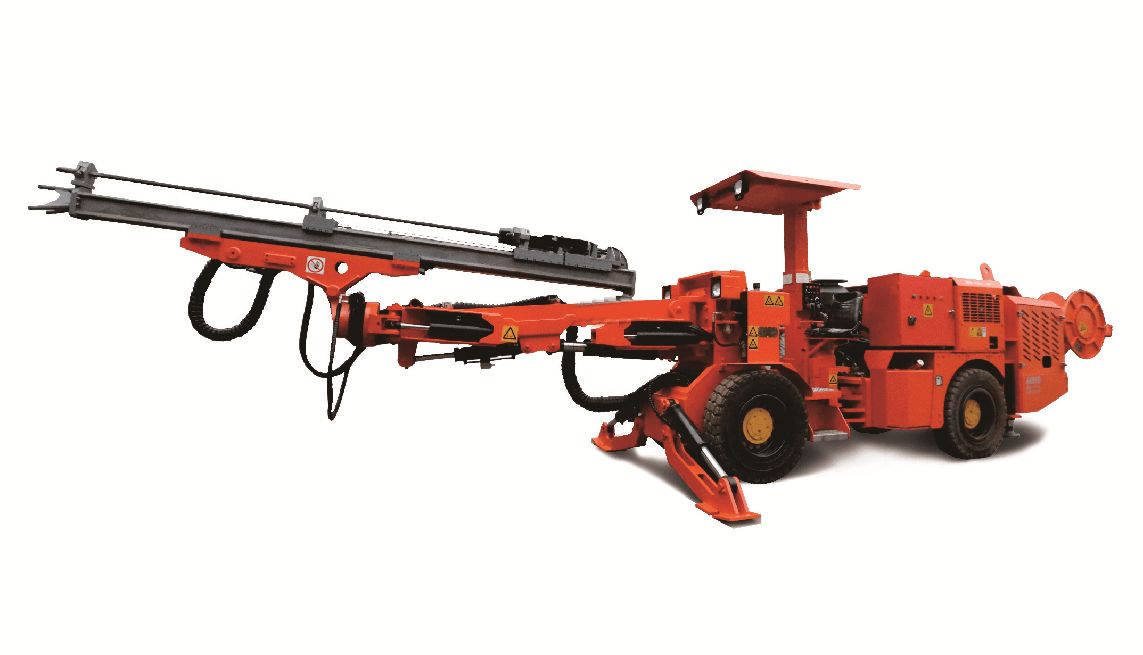

DJW1-24E
- DJW1-24E — Overall Dimension
- 11303*1420*2127 mm
- DJW1-24E — Application Size
- 2500*2500-5200*4370 mm
- DJW1-24E — Drilling Depth
- 2100/2795 mm
- DJW1-24E — Drilling Speed
- 0.8-2 m/min
- Main Motor Power
- 37KW
- DJW1-24E — Hydraulic Oil Tank
- 120 L

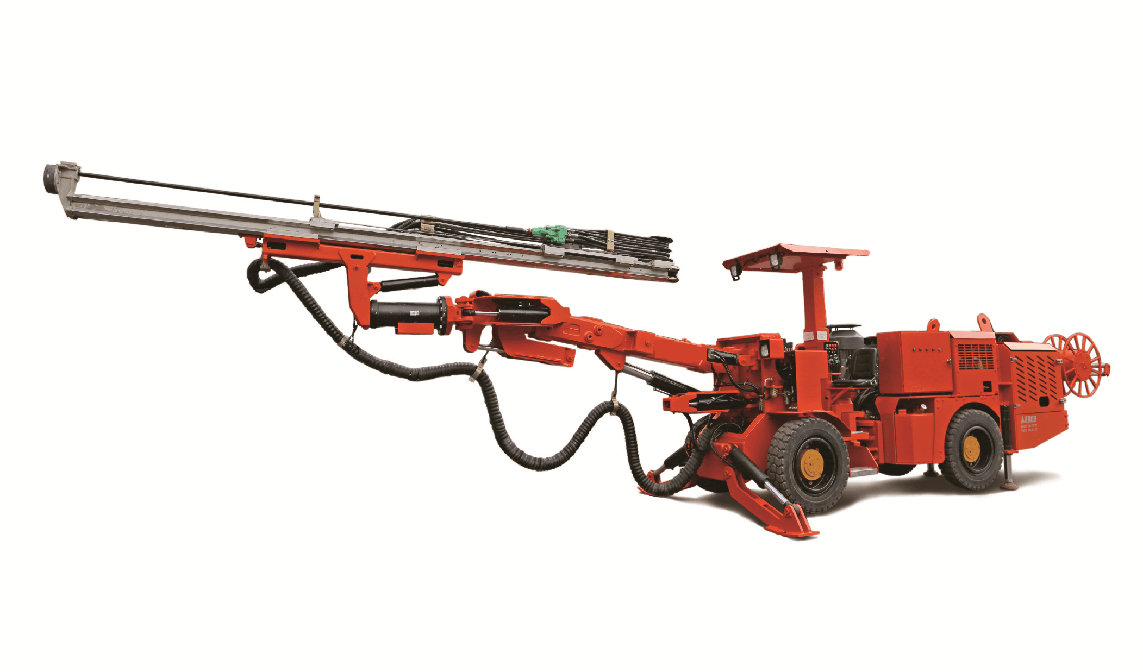

DJW1-31E
- DJW1-31E — Overall Dimension
- 11972*1685*2727 mm
- DJW1-31E — Application Size
- 3500*3500-6600*6200 mm
- DJW1-31E — Drilling Depth
- 2795/3440/4000 mm
- DJW1-31E — Drilling Speed
- 0.8-2 m/min
- Main Motor Power
- 55KW
- DJW1-31E — Hydraulic Oil Tank
- 120 L

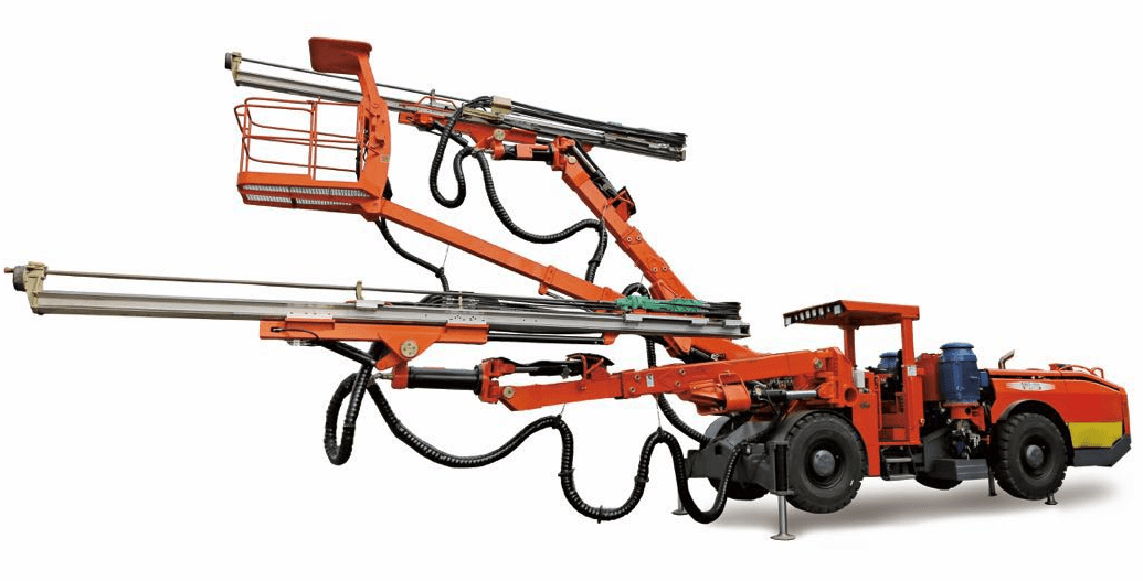

DJW2-100
- DJW2-100 — Overall Dimension
- 15829*2530*3090 mm
- DJW2-100 — Application Size
- 13730*9200 mm
- DJW2-100 — Drilling Depth
- 3405/4015/4625 mm
- DJW2-100 — Drilling Speed
- 0.8-2 m/min
- Main Motor Power
- 2*75KW
- DJW2-100 — Hydraulic Oil Tank
- 300 L
