Drill jumbos

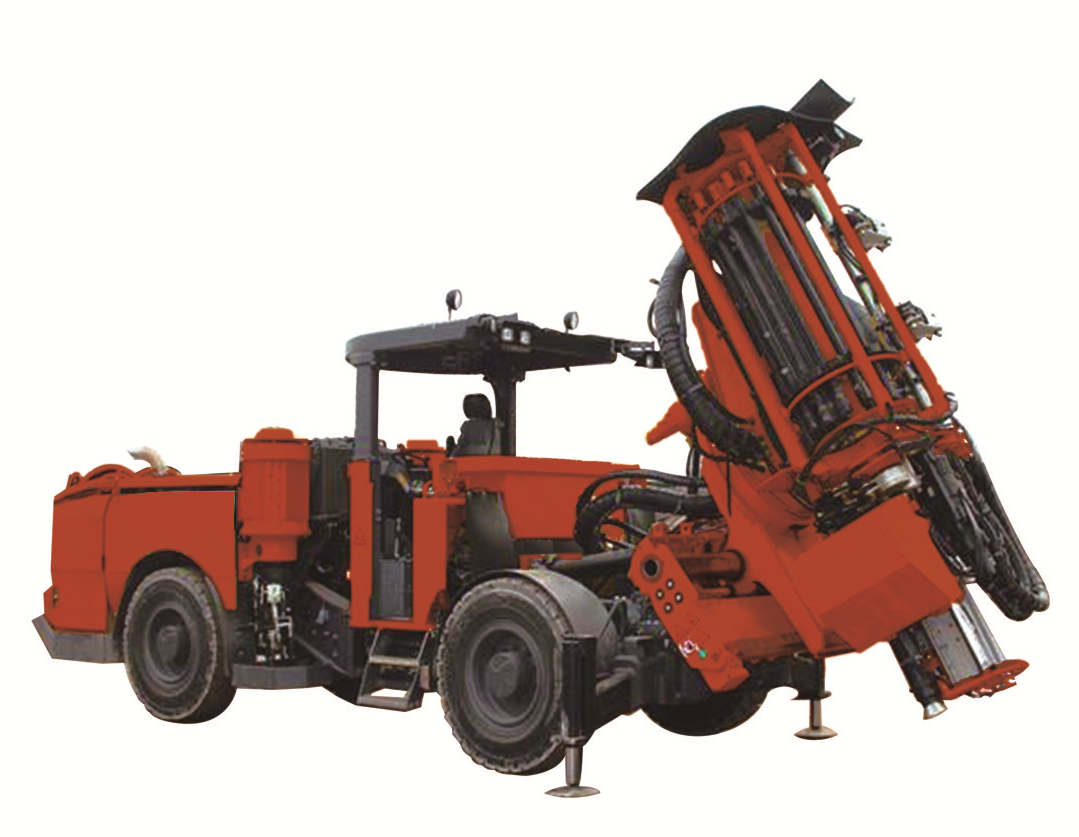

DL-4(for Mining)
DL-4(for Mining)ProjectUnitParameterOverall Dimension(mm)9905*1990*3580Application Size(mm)5940*5020
Parameters
| Item | Unit | Value |
|---|---|---|
| DL-4(for Mining) — Overall Dimension | mm | 9905*1990*3580 |
| DL-4(for Mining) — Application Size | mm | 5940*5020 |
| DL-4(for Mining) — Drilling Depth | m | 40 |
| DL-4(for Mining) — Drilling Speed | m/min | 0.8-2 |
| DL-4(for Mining) — Hydraulic Oil Tank | L | 160 |
| DL-4(for Mining) — Operating Weight | kg | 16500 |
| DL-4(for Mining) — Gradebility | % | 25 |
| DL-4(for Mining) — Arm Length | mm | 1220/1520/1830 |
| DL-4(for Mining) — Diesel Engine Power | kw | 58/22 |
| DL-4(for Mining) — Water Flow speed | L/Min | 65 |
| DL-4(for Mining) — Water Flow Pressure | Mpa | 0.8-1.2 |
DL-4(for Mining)
| Item | Unit | Value |
|---|---|---|
| Drilling Rod Capacity | — | 20+1 |
| Main Motor Power | — | 55KW |
| Travelling Speed ((km/h)) | — | >10 |
| Drilling Arm Model | — | HC109 |
| Steering | — | 41 |
| Tyre Size | — | 12xR20 |
