Dump truck

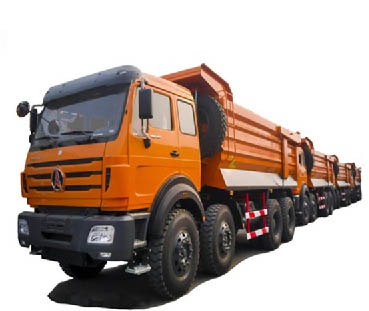

Beiben 380hp 8x4 Tipper Dump Truck model 3138K
Sales No.3138K Dimension（mm)Long10380Wide2500High3484Wheel base（mm）1500+4150+1450Dr
Parameters
| Item | Unit | Value |
|---|---|---|
| Sales No. | — | 3138K |
| Dimension(mm) | Long | 10380 |
| Wheel base(mm) | — | 1500+4150+1450 |
| Drive | — | 8×4 |
| Engine (Model) | — | WP10.380E32 |
| Cabin | — | NG80B/Long cab |
| Clutch(mm) | — | Φ430 |
| Front Axle | — | 7.5T |
| Rear/Mid Axle (Model/speed radio) | — | Double Reduction Driving Axle /5.263 |
| Steering System | — | ZF8098 |
| Braking System | — | Dual Circulation Air Brake System |
| Fuel Tank(L) | — | 400L |
| Frame/mm | — | 317×70×8.5+7+8mm |
| Tire | — | 12.00R20 |
| Front/Rear Overhang | — | 1410/2060 |
| Transmission | — | Fuller 12JS200T |
| Curb Weight(kg) | — | 14980 |
| Up Body Volume(m³) | — | 7.5mx2.3mx1.5m |
| Max Speed(km/h) | — | 90 |
