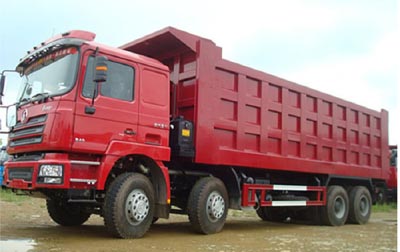

SHACMAN 375hp 8x4 Dump Truck model SX3317DR456
ModelShacman F3000 /F2000 Dump TruckDriving type8x4 (optio
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | Shacman F3000 /F2000 Dump Truck |
| Driving type | — | 8x4 (option 4x2, 6x4) |
| Weight (Complete kerb mass (kg)) | — | 14500 |
| GVW | kg | 32500 |
| Dimensions (LxWxH (mm)) | — | 11355x2490x3370 |
| Body size(mm) | — | 8000,8300x2300x1100,1300,1500 |
| Front/rear overhang(chassis) | — | 1525/2055 |
| Wheel base | mm | 1800 4575 1400 |
| Track width | mm | 2036/1850 |
| Performance (Max. speed ( km/h)) | — | 74 |
| Min. turning circle | m | 17 |
| Min. ground clearance | mm | 314 |
| Approach/Departure angle(°) | — | 22/30 |
| Max. gradeability | % | 33 |
| Transmission | — | FAST FULLER 9F/1R OR 10F/2R or 12F/2R transmission |
| Service brake | — | With dual-circuit compressed air brake |
| Park brake | — | Power spring brake acting on rear wheel |
| Steering | — | ZF8098 Power assistant steering |
| Chassis (Type) | — | Ladder structure with parallel straight |
300x8x(8 7)
| Item | Unit | Value |
|---|---|---|
| Suspension (Front suspension) | — | Longitudinal leaf spring |
| Rear suspension | — | Inverted leaf spring stabilizator suspension |
| Tyres (Type(standard)) | — | 11.00-20 |
| Optional | — | 12.00R20/11.00R20/12.00-20/12R22.5 |
| Fuel tank (Tank capacity (L)) | — | 380 |
| Cab (Type) | — | MAN F3000/ F2000, Middle Lengthened flat roof |
| Equipemets | — | Hydraulic suspension cab, hydraulic chair with seatbelts,1 sleeping bed… |
| Power | kw/HP | 276/375 |
| Max. torque (N.m)/rpm | — | 1500/1200-1600 |
| Displacement | L | 11.596 |
| Emission standard | — | Euro II |
| Axles (Brand) | — | HANDE (MAN) |
| Front axle | — | 7500kg |
| Rear axle | — | 13000kg,Double reduction driving axle with inter-wheel differential and differential lock |
| Ratio | — | 5.73 |
