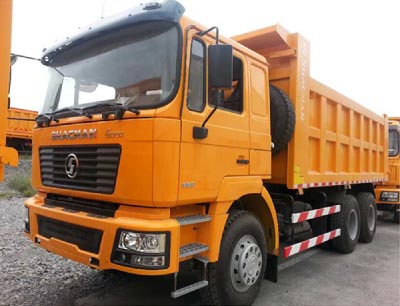

SHACMAN 336hp 6x4 Dump Truck model SX3254JS384
1.The F2000 Series is based on the STYER Chassis and GERMAN Giant MAN group technology, equipped with WEICHAI powered engine ranging from 336hp to 430hp. 2. The tranmission brands are from FAST, ALLISON and ETON in both Automatic and Manual. 3.The F3000 Series can satisfy the nee
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | SHACMAN F2000 SX3254JS384 |
| Engine | — | Make: WEICHAI, CHINAEngine model: WD 12.336 , 336hp engine Euro II emission standard4 stroke direct injection diesel engine6 cylinder in-line with water cooling, turbo-charging & intercoolingMaximum output: 336hp(247Kw)at 2200 rpm according to DINMaximum torque: 1350Nm at 1 3 00~1600 rpmBore: 126mm; Stroke: 1 55 mm; Displacement: 11.59 6L; |
| Transmission | — | FAST FULLER 9JS135(RTD11509C) 9F/1R |
| Front Axle | — | MAN 7500KG |
| Rear Axles | — | STR13 2X13000KG double reduction axle with inter-wheel differential and differential lock |
| Chassis | — | Parallel straight ladder structure of C type section300x80x(8+7) |
| Steering | — | MAN ZF8098, Integral circulating ball power steering |
| Brakes | — | Service brake: dual circuit compressed air brakeParking Brake(emergency brake): power spring brake acting on rear wheelsAuxiliary brake: WEVB ( engine exhaust valve brake ) |
| Wheel & Types | — | Rims: 8.5 -2 0 , 10 hole-steel Types 12.00 - 20 tube Option: 1 1 .00-20 tube, 12.00R20 tube 315/80R22.5 |
| Driver’s cab | — | MAN F2000 standard cabin with 2 rear windows, mechanical sunroof, hydraulic suspension of cab, hydraulic driver seat with seatbelts, hydraulic reversal, air condition, radio with MP3 Player, front bumper |
| Dimensions in mm (Wheel baseOverall Dimension Cargo body size) | — | 3800+1350mm8275 ×2496×3 300 (mm)54 00×2300×1 2 00(mm) |
| Weight in kg (Dead weightLoading capacity) | — | 1120015000~20000kg |
| Lifting type | — | Middle lift |
