Dump truck

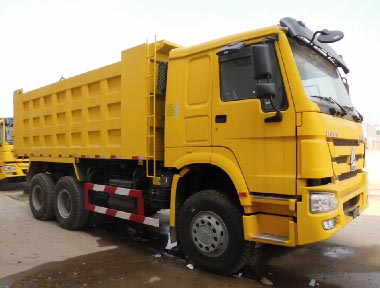

HOWO 371hp 6x4 dump truck model ZZ4257S3618
HOWO dump truck articulating tipper truck 10 wheels dump truck 40ton dump truck Dump truck, also called tipper truck, which mainly use for transporting heavy mining stone,sand,or garbage. Currently the dump truck are most off road dump truck, another kind is articulating dump tru
Parameters
| Item | Unit | Value |
|---|---|---|
| Cabin | — | HOWO 76 Standard CabWith two bunks, 70° hydraulically tillable to the front as attached photo for ref. |
| Vehicle Main Dimensions ((L x W x H)mm) | — | 80 45x2500x3400 |
| Wheel base | mm | 3225 +1350 |
| Wheel track (front/rear) | mm | 2022/1830 |
| Approach/Departure angle(°) | — | 19 / 50 |
| Weight in KGS (Tare Weight) | — | 11710 |
| Loading Capacity | — | 28600 |
| Front axles loading capacity | — | HF9 1x 8000 |
| Rear axles loading capacity | — | HC16 2x 16000 |
| Max. driving speed(km/h) | — | 75 |
| Model | — | WD615.47 |
| Type | — | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | — | 371HP |
| Emission standard | — | Euro Ⅱ |
| Gearbox | — | HW 19710, 10 forwards & 2 reverse |
| Clutch | — | Reinforced diaphragm clutch, diameter 430mm |
| Steering Gear | — | ZF 8098,power steering, hydraulic steering with power assistance |
| Fuel tank | L | 350 |
| Tire | — | 12.00R20 All steel radial tire 10 pieces with one spare |
| Brakes | — | Service brake: dual circuit compressed air brakeParking brake :(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust valve brake |
| Thickness (Side) | — | 6mm in high tensile strength steel Q345/B |
| Front | — | 6mm in high tensile strength steel Q345/B |
| Bottom | — | 8mm in high tensile strength steel Q345/B |
| tipper body Size ((L x W x H)) | — | 4500mm x 2300mm x 1540mm |
| tipper hydraulics (tipper type) | — | Front tipper type |
| tipper system | — | Complete set of HYVA brand hydraulics system |
