Dump truck

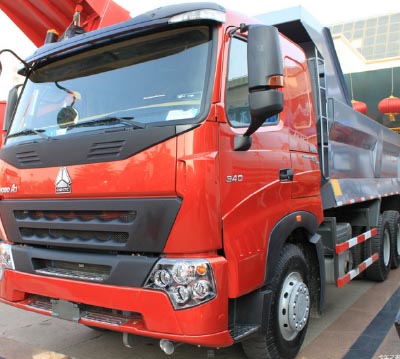

HOWO 334hp 8x4 dump truck model ZZ3257N3647N1
1,Howo A7 tippers: Howo 4x2 tipper; Howo 6x4 tipper;Howo 8x4tipper. 2,Howo concrete mixers: Howo 6x4 mixer; Howo 8x4 mixer.including7 m³ ,8 m³ ,9 m³ ,10 m³ ,11 m³ and 12 m³ . 3,Howo tracotrs: Howo 4x2 tractor; Howo 6x4 tractor.Engine power for the above heavy duty trucks is 266HP
Parameters
| Item | Unit | Value |
|---|---|---|
| Typical vehicle model | — | ZZ3257N3647N1 |
| CABIN | — | A7-W standard cabin,Four-point full floating air suspension shock absorber transverse stabilizer, single berth, air suspension driver’s seat, up/down and front/back adjustable steering wheel, BEHR European style new integral A/C heater, VDO instrument, CAN bus and electrics control system, safety belt with double locking mechanism, power window and rearview mirror, three locks combined in one, exterior sun visor, top wind deflector side air deflector, electronic hand throttle. |
| ENGINE: (MODEL) | — | CNHTC D12.34 |
| Rated power | — | 249kw/2000rpm |
| Max. torque | — | 1490Nm/ 1200-1500rpm |
| Displacement | — | 9.726L |
| Type | — | Inline 6 cylinder, supercharged intercooling, central supercharger, electronic high pressure and common rail |
| Clutch | — | 430 diaphragm spring clutch, hydraulic control air power assisted. |
| Transmission | — | SINOTRUK HW15710 10 speeds transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. |
| Steering system | — | German ZF Power assistant steering system |
| Front axle | — | HF9 Rated load 9Ton, disc-type or drum type |
| Rear axle | — | AC16 |
| Suspension | — | Front and rear leaf spring suspension, front suspension with shock absorber, transverse stabilizer , rear suspension is disconnected type with transverse stabilizer |
| Brake system: | — | Service brake: dual-circuit air pressure brake; Parking brake: energy storage spring air cutoff brake Auxiliary brake: EVB engine extinguish exhaust brake, |
| Electric system: | — | CAN bus control, voltage: 24V, generator: 2240w; starter: 7.5kw; battery: 12V/165Ah; 2 pieces |
| Tyre: | — | 12.00R20 |
| Kerb weight | — | 12270kg |
| Vehicle overall dimension | — | 8265x2496x3490mm |
| Carriage internal dimension | — | 5400x2300x1200mm (1300mm, 1400mm, 1500mm ) |
| Lifting way | — | Middle lift or front lift |
| Steel thickness of carriage | — | Floor 8mm x side 4mm |
| Wheel base | — | 3625 1350mm |
| color | — | White, red, gray, yellow, blue, green |
| Fuel tanker capacity | — | 300L |
