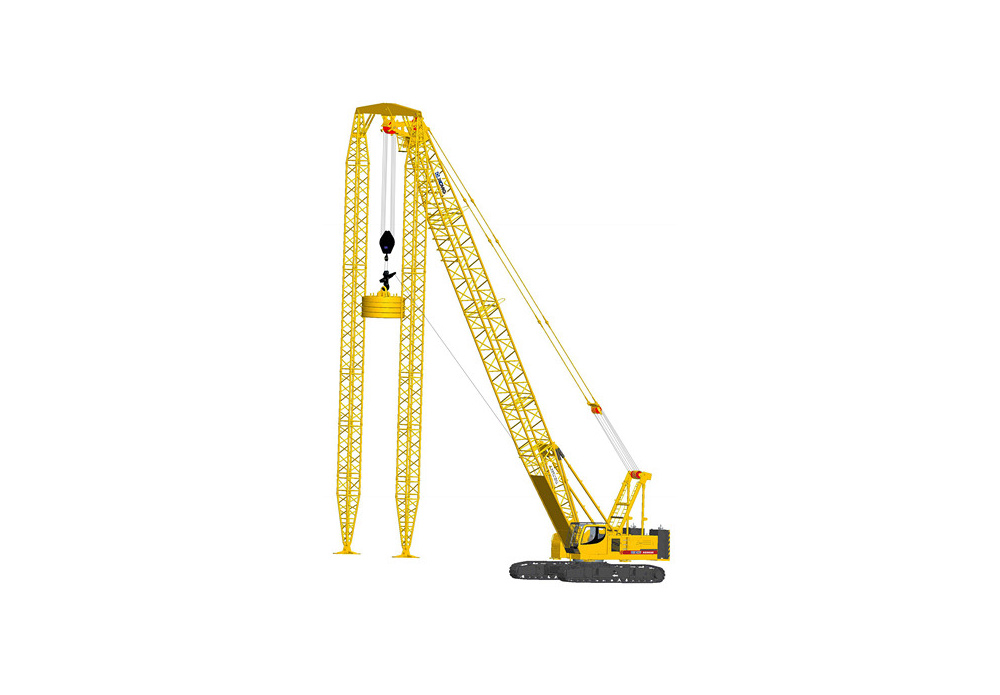

Crawler dynamic compactor
XGH600
ProjectUnitParameterTamping energy levelt.m600/1500Max. allowed rammer weightt30/75Max. droping dist
Parameters
| Item | Unit | Value |
|---|---|---|
| Tamping energy level | t.m | 600/1500 |
| Max. allowed rammer weight | t | 30/75 |
| Max. droping distance | m | 20/20 |
| Max. height from pulley center to ground | m | 26/26 |
| The length of the boom | m | 19～25/19～28 |
| working angles | ° | 60～78/68～72 |
| Operating Radius | m | 7.5～11.5/9.3～11 |
| grounded length | mm | 6455 |
| Wheelbase | mm | 4500 |
| Track link width | mm | 760 |
| Size of Host Machine | m | 9.56×3.49×3.43 |
| Hoisting rope diameter | mm | 28 |
| Single rope tension | t | 15.8 |
| Full load lifting speed (m/min) | — | (25/9) |
| Range of rope diameter | mm | 20 |
| radius changing speed | m/min | 57 |
| turning speed | r/min | 1.6 |
| traveling speed | km/h | 1.2 |
| gradeability | % | 40 |
| Ground pressure | MPa | 0.074 |
| Engine | — | Cummins |
| Model | — | ISLe340 |
| engine power | kW | 250 |
| Emission | — | euro3 |
| The basic arm weight | t | 74(25m main Boom) |
| counter weight | t | 22 |
| The host weight | t | 42 |
