Crawler dynamic compactor

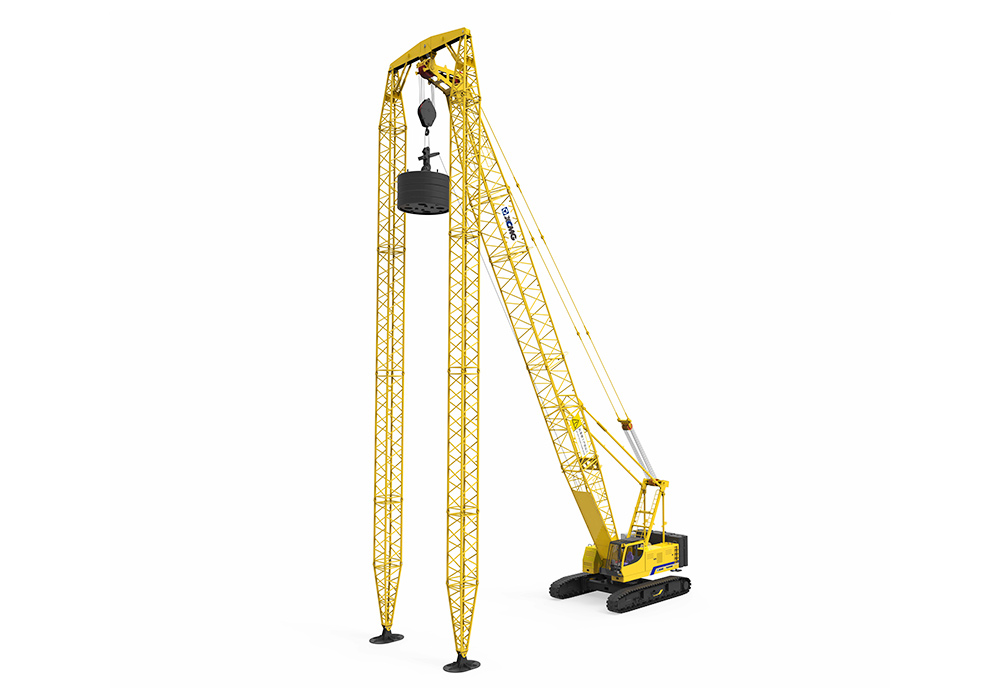

XGH460
ProjectUnitParameterTamping energy levelt.m460/1200Max. allowed rammer weightt23/60Max. droping dist
Parameters
| Item | Unit | Value |
|---|---|---|
| Tamping energy level | t.m | 460/1200 |
| Max. allowed rammer weight | t | 23/60 |
| Max. droping distance | m | 20/20 |
| Max. height from pulley center to ground | m | 26/26 |
| The length of the boom | m | 19～25/19～28 |
| working angles | ° | 61～78/67～71 |
| Operating Radius | m | 7～11/9～11 |
| grounded length | mm | 6025 |
| Wheelbase | mm | 4200 |
| Track link width | mm | 760 |
| Size of Host Machine | m | 9.15×3.42×3.45 |
| Hoisting rope diameter | mm | 28 |
| Single rope tension | t | 10 |
| Full load lifting speed (m/min) | — | (30/12) |
| Range of rope diameter | mm | 20 |
| radius changing speed | m/min | 57 |
| turning speed | r/min | 2 |
| traveling speed | km/h | 1.2 |
| gradeability | % | 40 |
| Ground pressure | MPa | 0.071 |
| Engine | — | Dongfeng Cummins |
| Model | — | QSL8.9-C325 |
| engine power | kW | 235 |
| Emission | — | euro3 |
| The basic arm weight | t | 66.5(25m main Boom) |
| counter weight | t | 22 |
| The host weight | t | 37.7 |
