Crawler dynamic compactor

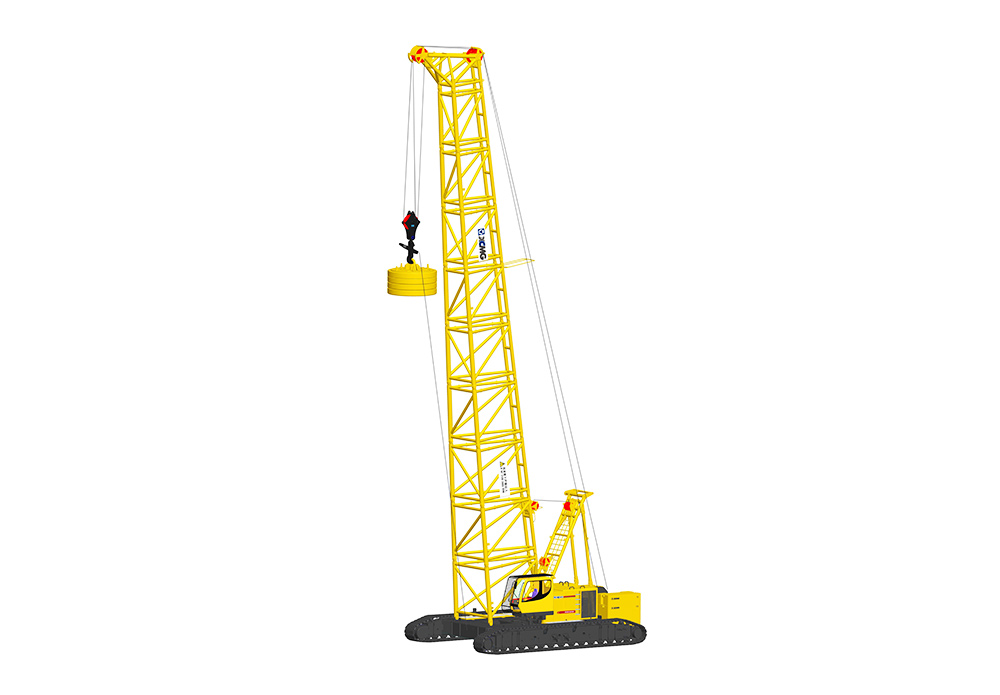

XGH1000K
ProjectUnitParameterTamping energy levelt.m1000Max. allowed rammer weightt40Max. droping distancem25
Parameters
| Item | Unit | Value |
|---|---|---|
| Tamping energy level | t.m | 1000 |
| Max. allowed rammer weight | t | 40 |
| Max. droping distance | m | 25 |
| Max. height from pulley center to ground | — | m |
| The length of the boom | m | 29 |
| working angles | ° | 86～84 |
| Operating Radius | m | / |
| grounded length | mm | 8000 |
| Wheelbase | mm | 6000 |
| Track link width | mm | 850 |
| Size of Host Machine | m | 3.4x3.4x9.219 |
| Hoisting rope diameter | mm | 28 |
| Single rope tension | t | 16 |
| Full load lifting speed | m/min | 0～60 |
| Range of rope diameter | mm | / |
| radius changing speed | m/min | / |
| turning speed | r/min | / |
| traveling speed | km/h | 0.48 |
| gradeability | % | 10 |
| Ground pressure | MPa | 0.07～0.1 |
| Engine | — | Weichai |
| Model | — | WP10.336NCT |
| engine power | kW | 247 |
| Emission | — | euro3 |
| The basic arm weight | t | 100 |
| counter weight | t | 30 |
| The host weight | t | 60 |
