Crawler dynamic compactor

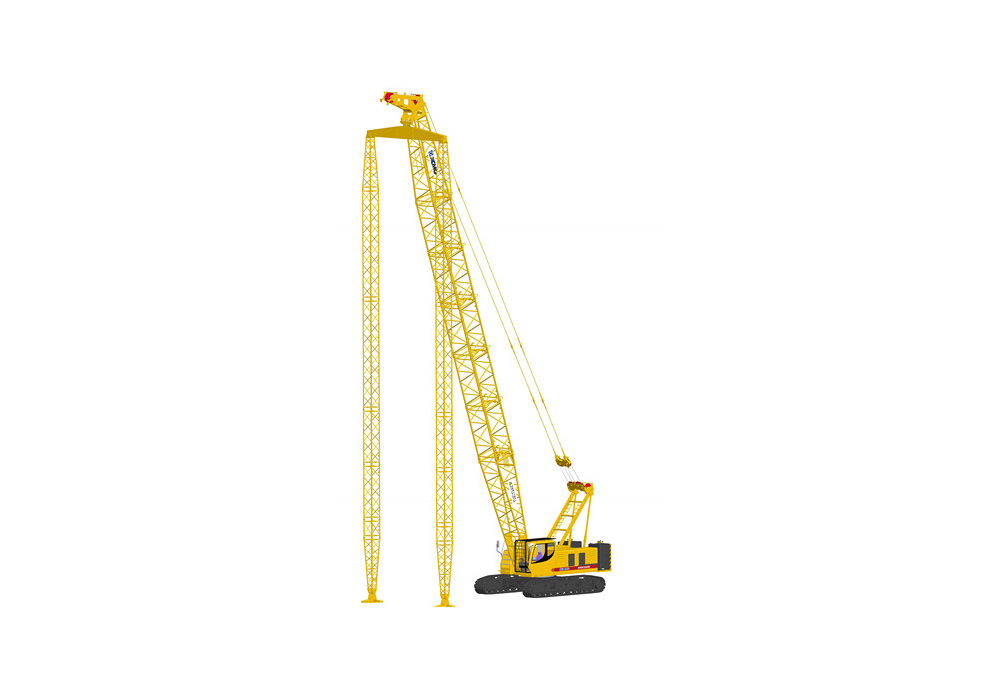

XGH300K
ProjectUnitParameterTamping energy levelt.m300/600Max. allowed rammer weightt15/30Max. droping dista
Parameters
| Item | Unit | Value |
|---|---|---|
| Tamping energy level | t.m | 300/600 |
| Max. allowed rammer weight | t | 15/30 |
| Max. droping distance | m | 20 |
| Max. height from pulley center to ground | m | / |
| The length of the boom | m | 19～25 28 |
| working angles | ° | 78/65～70 |
| Operating Radius | m | 7.5/12～15 |
| grounded length | mm | 5000 |
| Wheelbase | mm | 3600 |
| Track link width | mm | 700 |
| Size of Host Machine | m | 11.9×3.00×3.10 |
| Hoisting rope diameter | mm | 26 |
| Single rope tension | t | / |
| Full load lifting speed | m/min | 25/12.5 |
| Range of rope diameter | mm | 20 |
| radius changing speed | m/min | 50 |
| turning speed | r/min | 0～2 |
| traveling speed | km/h | 0～1.35 |
| gradeability | % | 40 |
| Ground pressure | MPa | 0.069 |
| Engine | — | Dongfeng Cummins |
| Model | — | 6BTAA5.9-C150 |
| engine power | kW | 112 |
| Emission | — | euro2 |
| The basic arm weight | t | 50(25m main Boom) |
| counter weight | t | 16 |
| The host weight | t | 30.5 |
