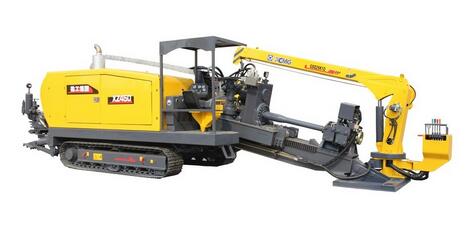

Horizontal directional drill

XZ450

Project Engine Type Rated power Thrust-Pull Max thrust-pull force thrust-pull speed Rotation Torque Max spindle speed Mud pump Max Flow rate Max pressure Pipe Loader Crane Lifting weight Loading capacity Max inclination angle Max backreamer diameter Weight Dimension Remark Unit -

Parameters

Engine

Item Unit Value
Type Cummins 6CTA8.3-C260
Rated power kW/r/min 194/2200

Thrust-Pull

Item Unit Value
Max thrust-pull force kN 480
thrust-pull speed m/min 38

Rotation

Item Unit Value
Torque N·m 23500
Max spindle speed r/min 135

Mud pump

Item Unit Value
Max Flow rate L/min 450
Max pressure MPa 8
Pipe (mm×m) φ89×4.5

Loader Crane

Item Unit Value
Lifting weight 2
Loading capacity (t•m) 4
Max inclination angle ° 20
Max backreamer diameter (mm) φ900
Weight 13.3
Dimension mm 8800×2280×2610
Remark Optional:
