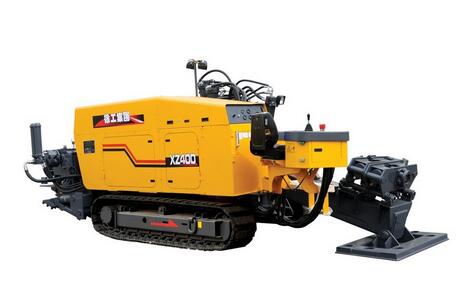

Horizontal directional drill

XZ400

Project Engine Type Rated power Thrust-Pull Max thrust-pull force thrust-pull speed Rotation Torque Max spindle speed Mud pump Max Flow rate Max pressure Pipe Loader Crane Lifting weight Loading capacity Max inclination angle Max backreamer diameter Weight Dimension Remark Unit -

Parameters

Engine

Item Unit Value
Type Cummins 6CTAA8.3-C240
Rated power kW/r/min 179/2200

Thrust-Pull

Item Unit Value
Max thrust-pull force kN 400
thrust-pull speed m/min 21

Rotation

Item Unit Value
Torque N·m 14000
Max spindle speed r/min 104

Mud pump

Item Unit Value
Max Flow rate L/min 450
Max pressure MPa 8
Pipe mm×m φ83×3

Loader Crane

Item Unit Value
Max inclination angle ° 23
Max backreamer diameter mm φ900
Weight t 11.5
Dimension mm 7080×2450×2450
Remark Optional:
