Horizontal directional drill

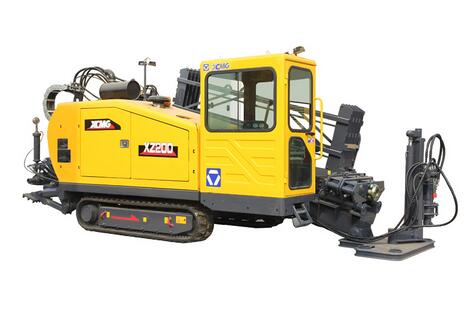

XZ200

Project Engine Type Rated power Thrust-Pull Max thrust-pull force thrust-pull speed Rotation Torque Max spindle speed Mud pump Max Flow rate Max pressure Pipe Loader Crane Lifting weight Loading capacity Max inclination angle Max backreamer diameter Weight Dimension Remark Unit -

Parameters

Engine

Item Unit Value
Type Cummins 6BTAA5.9-C150
Rated power kW/r/min 112/2200

Thrust-Pull

Item Unit Value
Max thrust-pull force kN 225
thrust-pull speed m/min 26

Rotation

Item Unit Value
Torque N·m 6350
Max spindle speed r/min 160

Mud pump

Item Unit Value
Max Flow rate L/min 250
Max pressure MPa 8
Pipe mm×m φ60×3

Loader Crane

Item Unit Value
Max inclination angle ° 22
Max backreamer diameter mm φ600
Weight t 8.5
Dimension mm 5900×2020×2400
Remark Optional:
