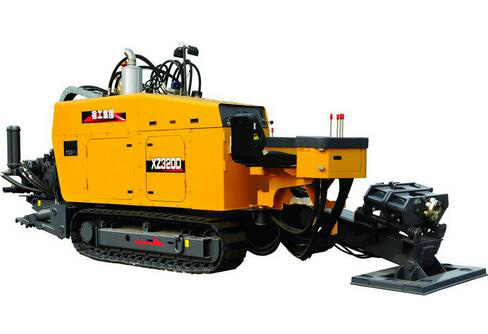

Horizontal directional drill

XZ320E

Project Engine Type Rated power Thrust-Pull Max thrust-pull force thrust-pull speed Rotation Torque Max spindle speed Mud pump Max Flow rate Max pressure Pipe Loader Crane Lifting weight Loading capacity Max inclination angle Max backreamer diameter Weight Dimension Remark Unit -

Parameters

Engine

Item Unit Value
Type Cummins 6BTAA5.9-C205
Rated power kW/r/min 153/2200

Thrust-Pull

Item Unit Value
Max thrust-pull force kN 345
thrust-pull speed m/min 25

Rotation

Item Unit Value
Torque N·m 12600
Max spindle speed r/min 140

Mud pump

Item Unit Value
Max Flow rate L/min 320
Max pressure MPa 8
Pipe mm×m φ73×3

Loader Crane

Item Unit Value
Max inclination angle ° 20
Max backreamer diameter mm φ800
Weight t 10
Dimension mm 6200×2250×2450
Remark Optional:
