Rough terrain forklift

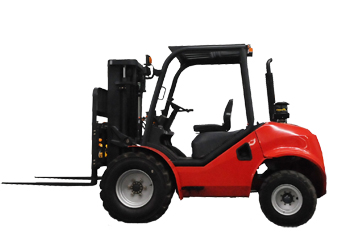

CPRT25
CPRT25 — Rough terrain forklift. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| CPRT25(Diesel) — Rated capacity | kg | 2500 |
| CPRT25(Diesel) — Load centre | mm | 500 |
| CPRT25(Diesel) — Lift height | mm | 3000 |
| CPRT25(Diesel) — Free lift height | mm | 160 |
| CPRT25(Diesel) — Fork sizeL×W×T | mm | 1070x122x40 |
| CPRT25(Diesel) — Fork regulating range Min./Max. | mm | 250-1160 |
| CPRT25(Diesel) — Mast tilt angle F/R | Deg | 10°/12° |
| CPRT25(Diesel) — Front overhang | mm | 586 |
| CPRT25(Diesel) — Rear overhang | mm | 520 |
| CPRT25(Diesel) — Min. ground clearance | mm | 270 |
| CPRT25(Diesel) — Length to face of fork (without fork) | mm | 2946 |
| CPRT25(Diesel) — Overall width | mm | 1557.5 |
| CPRT25(Diesel) — Mast lowered height | mm | 2265 |
| CPRT25(Diesel) — Mast extended height (with backrest) | mm | 4175 |
| CPRT25(Diesel) — Overhead guard height | mm | 2256.5 |
| CPRT25(Diesel) — Turning radius(outside) | mm | 2870 |
| CPRT25(Diesel) — Min. right angle stacking aisle width (add load length and clearance) | mm | 4726 |
| CPRT25(Diesel) — Travel(Unladen/Laden) | Km/h | 20/18 |
| CPRT25(Diesel) — Lifting(Laden) | mm/s | 570 |
| CPRT25(Diesel) — Lowering(Laden) | mm/s | 600 |
| CPRT25(Diesel) — Max. Drawbar pull(Laden/unladen) | KN | 17 |
| CPRT25(Diesel) — Tread front | mm | 1250.5 |
| CPRT25(Diesel) — Tread Rear | mm | 1205 |
| CPRT25(Diesel) — Tyre pressure front | bar | 680 |
| CPRT25(Diesel) — Tyre pressure rear | bar | 650 |
| CPRT25(Diesel) — Seat to ceiling inside height | mm | 1010 |
| CPRT25(Diesel) — Wheelbase | mm | 1880 |
| CPRT25(Diesel) — Self weight | kg | 4465 |
| CPRT25(Diesel) — Battery(Voltage/Capacity) | V/Ah | 12/90 |
| CPRT25(Diesel) — Rated output/r.p.m. | kw | 42.1/2300 |
| CPRT25(Diesel) — Rated torque/r.p.m. | N.m | 186-206/1700 |
| CPRT25(Diesel) — Bore×Stroke | mm | 98×110 |
| CPRT25(Diesel) — Displacement | L | 3.318 |
| CPRT25(Diesel) — Fuel tank capacity | L | 55 |
| CPRT25(Diesel) — Operating pressure(For attachments) | Mpa | 20 |
| CPRT25(Diesel) — Min. right angle stacking aisle width (add load length and clearance) | mm | 2615 |
CPRT25(Diesel)
| Item | Unit | Value |
|---|---|---|
| Max. Gradeability(Laden) (％) | — | 20 |
| Tyre front | — | 12-16.5-12PR |
| Tyre Rear | — | 27×10-12-12PR |
| Engine Model | — | 4TNE98-BQFLC |
| Engine Manufacture | — | YANMAR |
| No. of cylinder | — | 4 |
| Transmission Manufacture | — | China |
| Type | — | YQXD30-XH |
| Stage F/R | — | one / one |
