Diaphragm wall grab

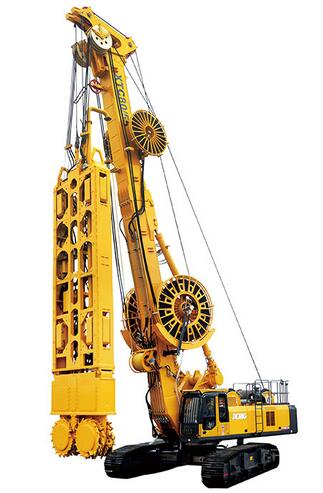

XTC80/55

Project Working parameter Wall thickness Wall depth Main data Max. hoisting force Max. hoisting speed Max. torqe Rotary speed Slag discharge way Mud pump ability Power parameter Engine model Engine rated power Undercarrige Max. travelling speed Max. grade ability Max. clearance T

Request a quote

Parameters

Working parameter

Item Unit Value
Wall thickness mm 800~1200
Wall depth m 55

Main data

Item Unit Value
Max. hoisting force kN 600
Max. hoisting speed m/min 40
Max. torqe kN.m 2×80
Rotary speed r/min 0~25

Power parameter

Item Unit Value
Engine model — CUMMINS QSM11
Engine rated power kW/r/min 298/2100

Undercarrige

Item Unit Value
Max. travelling speed km/h 1.2
Max. grade ability % 30
Max. clearance mm 450
Track shoe width mm 800
Distance between tracks mm 3500~4900

Working condition

Item Unit Value
Total lengh mm 10805
Total width mm 4900
Total height mm 18914
Working radius mm 4800~5800

System parameter

Item Unit Value
Max.system pressure MPa 32
Max. system flow L/min 760

Weight parameter

Item Unit Value
Bare weight — 95
Frame weight — 36~40

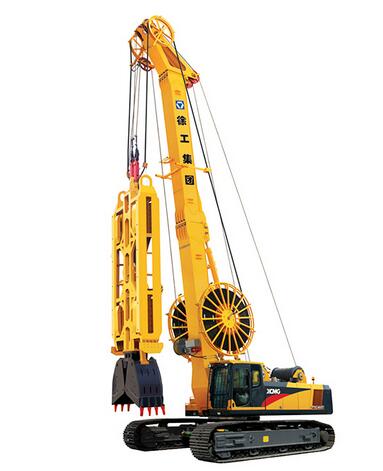

XG360
