Diaphragm wall grab

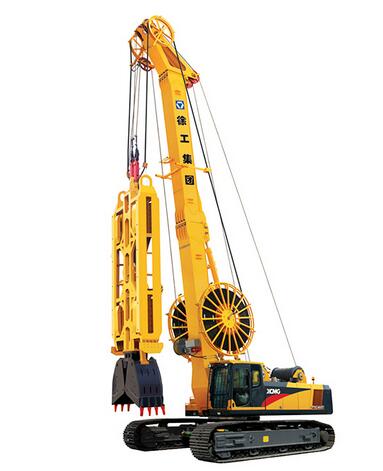

XG360

Project Working parameter Wall thickness Wall depth Main data Max. hoisting force Grab closing force Max. pull/push speed Grab opening time Grab closing time Power parameter Engine model Engine rated power Undercarrige Max. travelling speed Max. grade ability Max. clearance Track

Request a quote

Parameters

Working parameter

Item Unit Value
Wall thickness mm 300~1200
Wall depth mm 60

Main data

Item Unit Value
Max. hoisting force kN 360
Grab closing force kN 1000
Max. pull/push speed m/min 40
Grab opening time (s) — 6
Grab closing time (s) — 7

Power parameter

Item Unit Value
Engine model — CUMMINS QSL9
Engine rated power kW/r/min 242/2100

Undercarrige

Item Unit Value
Max. travelling speed km/h 1.5
Max. grade ability % 35
Max. clearance mm 468
Track shoe width mm 800
Distance between tracks mm 3500~4400

Working condition

Item Unit Value
Total lengh mm 10370
Total width mm 4400
Total height mm 17205
Working radius mm 4360~5160

System parameter

Item Unit Value
Max.system pressure MPa 30
Max. system flow L/min 560

Weight parameter

Item Unit Value
Bare weight — 61
Grab weight — 14~24

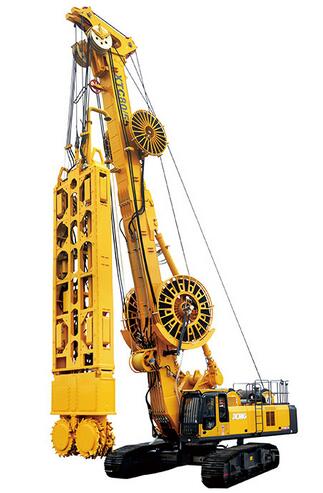

XTC80/55
