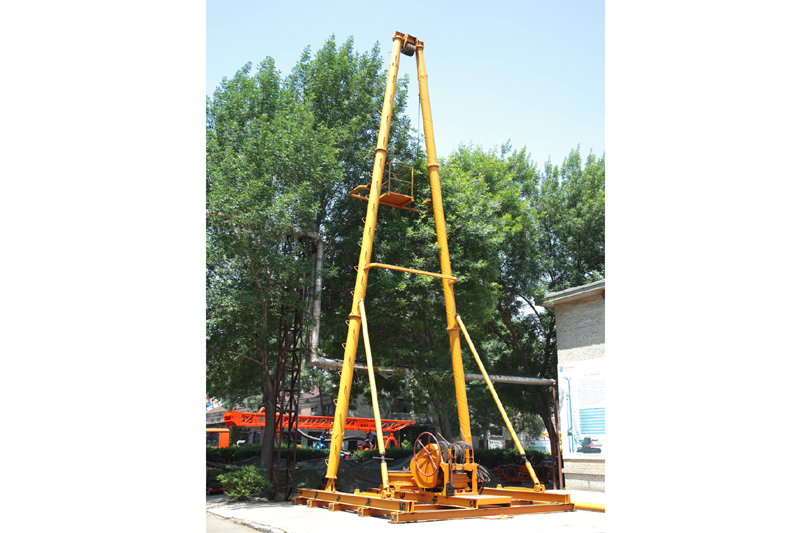

Deep well drilling rig
YT600A
YT-600 type drilling rig adopts single hoist set, large lifting capacity, large module, hyperboloid turntable, ensuring the balance of the rig in operating, large torque and using long time, it can used in soil and rock stratum. This type of driller is used in construction of hig
Parameters
| Item | Unit | Value |
|---|---|---|
| Technical parameters — Drilling depth | m | 80 |
| Technical parameters — Drilling diameter | mm | 2000 |
| Technical parameters — Inner diameter of turntable | mm | 500 |
| Technical parameters — Turntable rotation speed (forward and reverse) | r/min | 37, 57, 85 |
| Technical parameters — Rated output torque of turntable | KN.m | 20 |
| Technical parameters — Hoist lifting capacity (single rope) | KN | 40 |
| Technical parameters — Bearing capacity of hydrant | KN | 240 |
| Technical parameters — Matching power of main machine | KW | 45 |
| Technical parameters — The weight of whole machine | kg | 3380 |
Technical parameters
| Item | Unit | Value |
|---|---|---|
| Working condition | — | Use A13 or A15 or A18 type frame |
