Deep well drilling rig

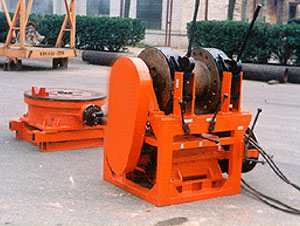

YT400A
YT-400 engineering and water-well drilling rig adopts single hoist set, having large lifting capacity, large module, hyperboloid turntable ensuring the balance of the rig in operating, large torque and using long time, it is used in soil and rock stratum. This type of drilling ri
Parameters
| Item | Unit | Value |
|---|---|---|
| Technical parameters — Drilling depth | m | 80 |
| Technical parameters — Drilling diameter | mm | 1500 |
| Technical parameters — Inner diameter of turntable | mm | 500 |
| Technical parameters — Turntable rotation speed (forward and reverse) | r/min | 21.5, 38.4, 61 |
| Technical parameters — Rated output torque of turntable | KN.m | 15 |
| Technical parameters — Hoist lifting capacity (single rope) | KN | 40 |
| Technical parameters — Bearing capacity of hydrant | KN | 240 |
| Technical parameters — Matching power of main machine | KW | 30 |
| Technical parameters — The weight of whole machine | kg | 3190 |
Technical parameters
| Item | Unit | Value |
|---|---|---|
| Working condition (mm) | — | Use A13 or A15 or A18 type frame |
