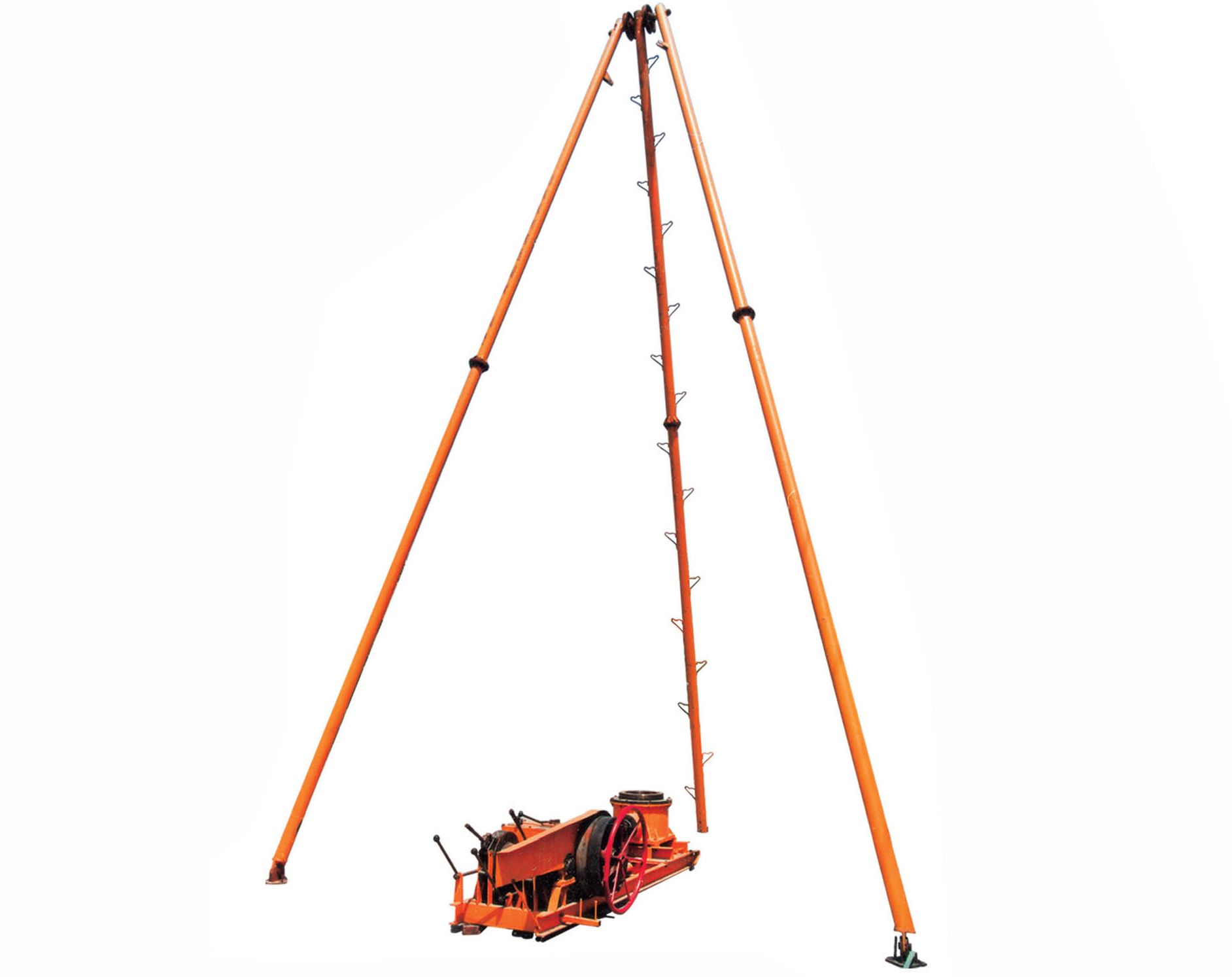

Deep well drilling rig
YT300A
YT-300A engineering and water-well drilling rig adopts tripod frame, it is easy to operate and transport. This type of driller is used in soil and rock stratum and not limited to the landform. This type of driller is necessary equipment in the electric power construction. It is u
Parameters
| Item | Unit | Value |
|---|---|---|
| Technical parameters — Drilling depth | m | 300 |
| Technical parameters — Drilling diameter | mm | 500 |
| Technical parameters — Inner diameter of turntable | mm | 340 |
| Technical parameters — Turntable rotation speed (forward and reverse) | r/min | 36; 52 |
| Technical parameters — Rated output torque of turntable | KN.m | 10 |
| Technical parameters — Hoist lifting capacity | KN | 30 |
| Technical parameters — Bearing capacity of hydrant | KN | 150 |
| Technical parameters — Matching power of main machine | KW | 22 |
| Technical parameters — Working conditions | mm | 4400×3900×9200 |
| Technical parameters — The weight of whole machine | kg | 2680 |
Technical parameters
| Item | Unit | Value |
|---|---|---|
| Transport conditions (mm) | — | In bulk (Tripod) |
