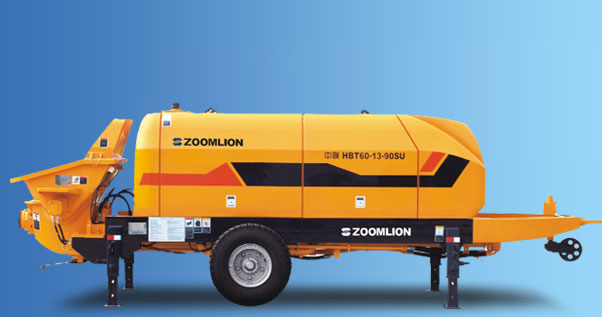

Trailer-mounted concrete pump
HBT60.13.90SU
1 .Stability: • Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more stable oil flow rate to the pumping unit. • Intelligent cont
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | HBT60.13.90SU |
| Drive power | KW | 60 |
| Max. Concrete Output | m3/h | 70/42 |
| Max. Concrete Pressure | bar | 70/130 |
| Concrete Cylinder(diam x stroke) | mm | 200x1800 |
| Strokes | 1/min | 21/13 |
| Hopper Capacity | L | 600 |
| Filling height | mm | 1400 |
