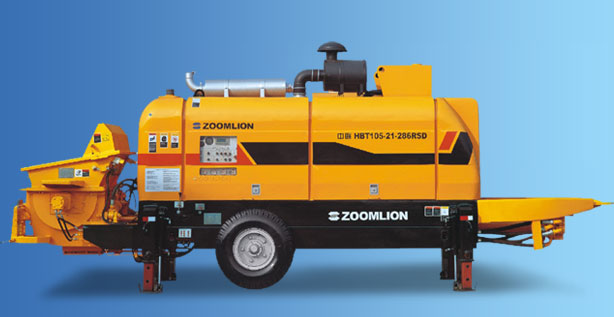

Trailer-mounted concrete pump
HBT105.21.286RSD
1.Stability: • Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more stable oil flow rate to the pumping unit. • Intelligent contr
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | HBT105.21.286RSD |
| Drive power | KW | 286 |
| Max. Concrete Output | m3/h | 105/65 |
| Max. Concrete Pressure | bar | 210/130 |
| Concrete Cylinder(diam x stroke) | mm | 200x2100 |
| Strokes | 1/min | 13/7 |
| Hopper Capacity | L | 800 |
| Filling height | mm | 1400 |
