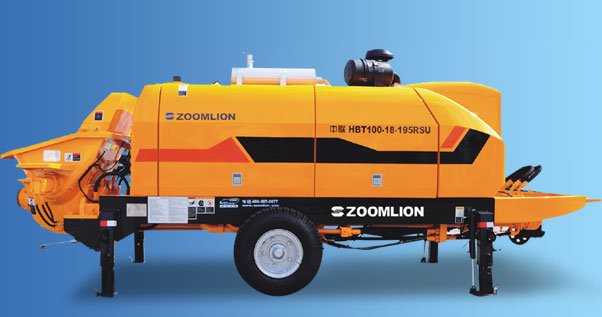

Trailer-mounted concrete pump
HBT100.18.186RSU
1.Stability: • Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more stable oil flow rate to the pumping unit. • Intelligent contr
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | HBT100.18.186RSU |
| Drive power | KW | 186 |
| Max. Concrete Output | m3/h | 93/64 |
| Max. Concrete Pressure | bar | 100/180 |
| Concrete Cylinder(diam x stroke) | mm | 180x2100 |
| Strokes | 1/min | 25/14 |
| Hopper Capacity | L | 800 |
| Filling height | mm | 1450 |
