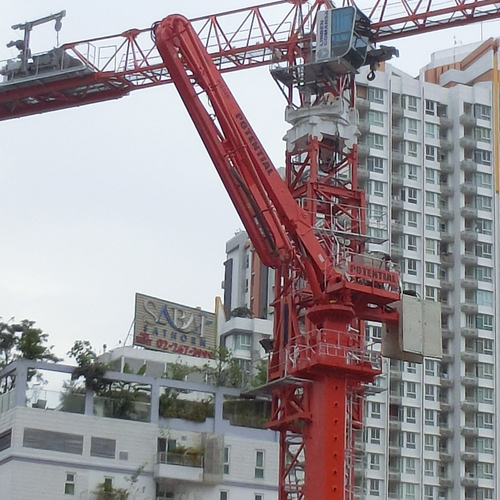

Concrete placing boom
HG34
Application Self-climbing type, climbing by floor frame or by shaft frame. Mainly used for concrete placing of construction project, including civil construction, plant construction, bridge construction, beam yard, nuclear power plant, infrastructure, etc. Charactics Modular desi
Parameters
| Item | Unit | Value |
|---|---|---|
| Model No. (HG28B) | — | HG32B |
| Delivery pipe (outside dia.×thickness) ㎜ (Φ134×4) | — | Φ134×4 |
| Hose pipe (inner dia.×length) ″×㎜ | — | 5″×3000 |
| Radius of placing boom | — | 32 |
| Stationary height | m | 22.9 |
| Boom structure | — | 4 section hydraulic foldable |
| Boom Length | m | 8.1 |
| 2nd boom | — | 0°～180° |
| 3rd boom | — | 0°～180° |
| 4th boom | — | 0°～180° |
| Boom Articulation ° (1st boom) | — | －4.2°～＋82.5° |
| Slewing Range ° | — | 360 |
| Power of motor kW | — | 11 |
| Pressure of hydraulic system | MPa | 28 |
| Hydrauclic Oil (ESSO NUTO H46) | — | ESSO NUTO H46 |
| Interval of climbing frame (m) (Climbing) | — | 3.0～4.2 |
| Placing | — | 6.0～8.4 |
Whole weight (kg)
| Item | Unit | Value |
|---|---|---|
| Operation Mode | — | 1,cable remote control 2,radio remote control |
| Control Mode (Standard) | — | step speed control |
| Option (stepless speed control) | — | stepless speed control |
| Power supply | V/Hz | 380/50 |
| Wind Speed (m/s) (Placing) | — | ≤13.8 |
| Climbing (≤7.9) | — | ≤7.9 |
| Working Temperature (Normal) | — | 0～40 |
| (℃) (Special) | — | -40、+50 |
