Concrete placing boom

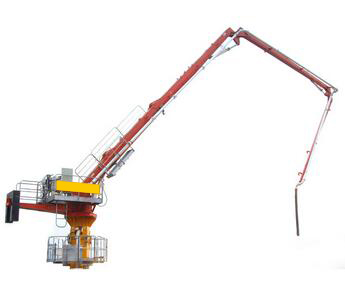

HG32
Application Self-climbing type, climbing by floor frame or by shaft frame. Mainly used for concrete placing of construction project, including civil construction, plant construction, bridge construction, beam yard, nuclear power plant, infrastructure, etc. Charactics □ Modular de
Parameters
| Item | Unit | Value |
|---|---|---|
| Model No | — | HG32 |
| Delivery Pipe(outside dia.×thickness) ㎜×㎜ | — | Φ134×4 |
| Hose pipe (inner dia.×length) ″×㎜ | — | 5″×3000 |
| Radius of placing boom | — | 31.7 |
| Stationary height | m | 22.9 |
| Boom structure | — | 3 sections hydraulic foldable |
| Boom Lenght | m | 14.5 |
| 2nd boom | — | 0°～180° |
| 3rd boom | — | 0°～180° |
| 4th boom | — | — |
| Boom Articulation ° (1st boom) | — | －4.2°～＋82.5° |
| Slewing range ° | — | 360 |
| Power of motor | kW | 11 |
| Pressure of hydraulic system | MPa | 28 |
| Hydraulic oil | — | ESSO NUTO H46 |
| Climbing type | — | Floor frame/shaft frame |
| Interval of climbing frame (m) (Climbing) | — | 3.0～4.2 |
| Placing | — | 6.0～8.4 |
Whole weight (kg)
| Item | Unit | Value |
|---|---|---|
| Operation Mode | — | 1. cable remote control2. radio remote control |
| Control Mode (Standard) | — | Step speed control |
| Option | — | Stepless speed control |
| Power supply(V/Hz) | — | 380/50 |
| Wind speed (m/s) (Placing) | — | ≤13.8 |
| Climbing | — | ≤7.9 |
| Working temperature (℃) (Normal) | — | 0～40 |
| Special | — | -40、+50 |
