Concrete placing boom
HG38

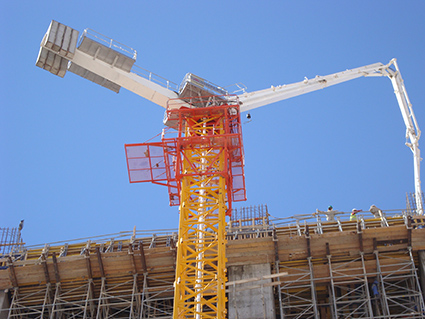

Application: HG38 is designed for special structure construction. It can be anchored on structures and grows up with the structure like hot top-kit tower cran climbs. HG38 ussually using on structures such as concrete/cement/aluminum silo, nuclear power plant, TV tower, etc. Futu
Parameters
| Item | Unit | Value |
|---|---|---|
| Model No. | — | HG38F/3 |
| Delivery pipe dimension (mm) | — | Φ134×4 |
| Hose Pipe (inside dia. x length) | mm | 5″×3000 |
| Radius of placing boom | — | 38 |
| Quntity of hydraulic foldable boom | — | 3 |
| Length of Booms | m | 20.8 |
| 2nd boom | — | 0°～180° |
| 3rd boom | — | 0°～180° |
| 4th boom | — | 0°～180° |
| Boom articulation ° (1st boom) | — | －4.2°～＋82.5° |
| Slewing range ° | — | 360 |
| Power of motor | kW | 15 |
| Pressure of hydraulic system | MPa | 31.5 |
| Stationary height | m | 47.3 |
| The max. anchoring height | m | 151 |
| Foundation | — | Stationary type & traveling type |
| Spec. of tower section (Fixed type) | — | 1.8m×1.8m×2.8m |
| POTAIN type | — | 2.0m×2.0m×3.0m |
| Climbing type | — | same as tower crane |
| Counter weight | — | Yes (6.8t) |
| Remote Control | — | Cable & Radio |
| Power | V/Hz | 380/50 |
| Wind speed (m/s) (Placing) | — | ≤13.8 |
| Climbing | — | ≤7.9 |
| Working temperature ( ℃) (Normal) | — | 0～+40 |
| Special | — | -40、+50 |
