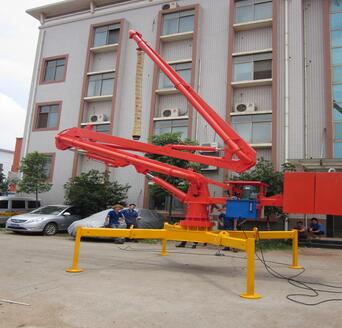

Concrete placing boom
HG13
Advanced full hydraulic drive system The hydraulic system of HG13 concrete placing boom can realize 360° slewing, the balance valve and solenoid directional control valve are relatively imported from Italian Oil control and Germany Rexroth. Reliable electrical system Main compone
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | HG13 |
| Boom length | — | 13 m |
| Hose length | — | 3 m |
| Rotary angle | — | 360° |
| Rotary speed | — | 0.23 r/min |
| Pitching angle | — | -0～90° |
| Pressure | — | 20 Mpa |
| Motor power | — | 4 kW |
| Drive mode | — | Completely Hydraulic |
| Weight (Self weight) | — | 2.7 t |
| Balance weight | — | 1.5 t |
