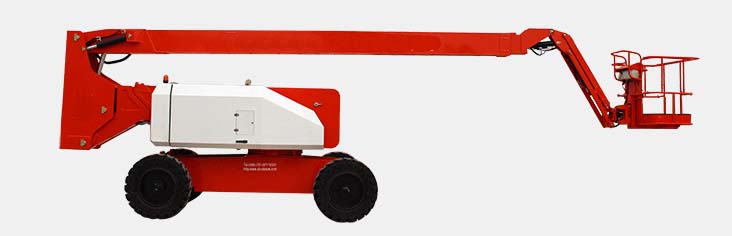

Articulated boom aerial working platform
CMQB25J
1. Wide operating range: 360° full direction operation at a height from 0~87 ft (26.6 m), with a horizontal reach max. by 52 ft 8 in (16.1 m) and a crossing height of 30 ft 8 in (9.4 m). 2. Large load capacity: The lift capacity is 507 lbs (230 kg); the platform can hold two oper
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMQB25J |
| Power source | — | Original Cummins Engine |
| Power | — | 60 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 81 ft (24.6 m) |
| Working height max. | — | 87 ft (26.6 m) |
| Horizontal reach max. | — | 52 ft 8 in (16.1 m) |
| Up and over clearance max. | — | 30 ft 8 in (9.4 m) |
| Length - stowed | — | 37 ft 3 in (11.36 m) |
| Width - stowed | — | 8 ft 1 in (2.48 m) |
| Height - stowed | — | 10 ft 4 in (3.16 m) |
| Wheelbase | — | 10 ft (3.05 m) |
| Ground clearance | — | 1 ft 3 in (0.39 m) |
| Platform size (L*W*H) | — | 4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 |
| Lift capacity | — | 507 lbs (230 kg) |
| Turntable rotation | — | 360° continuous |
| Platform rotation | — | 160° |
| Drive speed - stowed | — | 0～3.0 mph (0~4.8 km/h) |
| Drive speed - raised | — | 0～0.7 mph (0~1.1 km/h) |
| Gradeability | — | 45% |
| Turning radius - inside | — | 9 ft 8 in (3.0 m) |
| Turning radius - outside | — | 20 ft 8 in (6.33 m) |
| Turntable tailswing | — | 3 ft 3 in (1 m) |
| Max. allowable slope | — | 3° |
| Drive & steer model | — | 4 WD * 2 WS |
| Tire size / type | — | 12.00 - 20 / 8.5 solid |
Power
| Item | Unit | Value |
|---|---|---|
| Driving type | — | Hydraulic |
| Fuel tank capacity | — | 42.27 gal (160 L) |
| Control voltage | — | 12 VDC |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 35053 lbs (15900 kg) |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
