Articulated boom aerial working platform

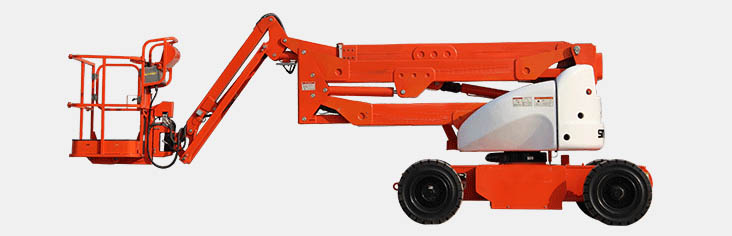

CMQB14EJ
1. Wide operating range: 355°full direction operation at the height from 0~ 51 ft (15.7 m) , with a horizontal reach max. by 24 ft 3 in (7.4 m ) and a crossing height of 24 ft 3 in (7.4 m). 2. Large load capacity: The lift capacity is 500 lbs (227 kg) ; the platform can hold two
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMQB14EJ |
| Power source | — | Battery |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 45 ft (13.7 m) |
| Working height max. | — | 51 ft (15.7 m) |
| Horizontal reach max. | — | 24 ft 3 in (7.4 m) |
| Up and over clearance max. | — | 24 ft 3 in (7.4 m) |
| Length - stowed | — | 21 ft 5 in (6.54 m) |
| Width - stowed | — | 5 ft 7 in (1.75 m) |
| Height - stowed | — | 6 ft 6 in (2 m) |
| Wheelbase | — | 6 ft 6 in (2 m) |
| Ground clearance | — | 8 in (0.2 m) |
| Platform size (L*W*H) | — | 5 ft*2 ft 5 in*3 ft 7 in (1.52 m*0.77 m*1.14 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 |
| Lift capacity | — | 500 lbs (227 kg) |
| Turntable rotation | — | 355° |
| Platform rotation | — | 160° |
| Drive speed - stowed | — | 0～3.2 mph (0~5.2 km/h) |
| Drive speed - raised | — | 0～0.5 mph (0~0.8 km/h) |
| Gradeability | — | 30% |
| Turning radius - inside | — | 2 ft 3 in (0.7 m) |
| Turning radius - outside | — | 10 ft 6 in (3.23 m) |
| Turntable tailswing | — | 0 ft (0 m) |
| Max. allowable slope | — | 3° |
| Drive & steer model | — | 2 WD * 2 WS |
| Tire size / type | — | 250*15 / solid |
Power
| Item | Unit | Value |
|---|---|---|
| Driving Type | — | Electromotor move |
Hydraulic system capacity
| Item | Unit | Value |
|---|---|---|
| Battery specification | — | 420 Ah, 6V * 8 |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 14330 lbs (6500 kg) |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
