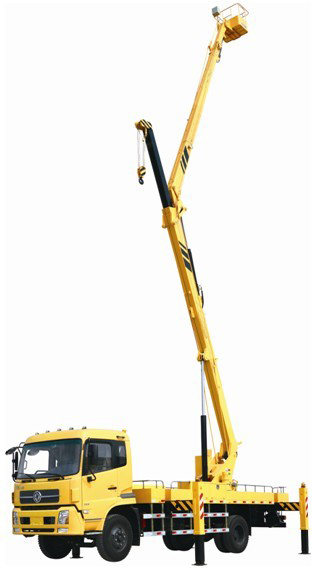

Articulated boom aerial working platform
CM5112JGKD
Main Feature ： ● Electro-hydraulic proportional control, stepless throttle ● Control box at both turret and platform ， Equiped with jib to realize a larger working range ● Safety interlock ● Large outrigger span, outrigger can be operate individually ● Emergency descent power, in
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | XHZ5112JGKB |
| Chassis Model | — | DFL1120B |
| Platform Safe Work Load | — | 300kg |
| Max. Work Height | — | 20.8m |
| Max. Work Range | — | 11m |
| Seating Capacity | — | 3 people |
| Dimension | — | 9250mm×2500mm×3850mm |
| Crane Max. Lift Weight | — | 3000 kg/5000kg(optional) |
