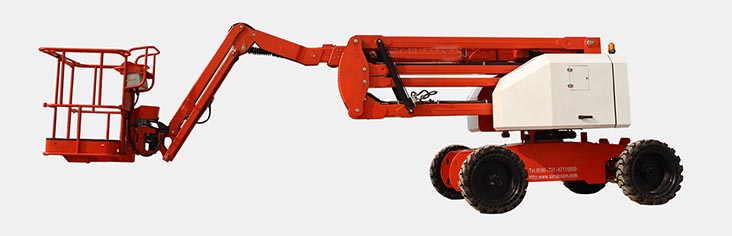

Articulated boom aerial working platform
CMQB15J
1. Wide operating range: 355°full direction operation at the height from 0~55 ft (17m), with a horizontal reach max. by 27 ft 9 in (8.5 m) and a crossing height of 24 ft 6 in (7.5 m). 2. Large load capacity: The lift capacity is 551 lbs (250 kg); the platform can hold two operato
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMQB15J |
| Power source | — | Perkins Engine |
| Power | — | 37.3 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 49 ft (14.7 m) |
| Working height max. | — | 55 ft (16.7 m) |
| Horizontal reach max. | — | 27 ft 9 in (8.5 m) |
| Up and over clearance max. | — | 24 ft 3 in (7.4 m) |
| Length - stowed | — | 25 ft 2 in (7.68 m) |
| Width - stowed | — | 7 ft 4 in (2.26 m) |
| Height - stowed | — | 7 ft 1 in (2.22 m) |
| Wheelbase | — | 6 ft 7 in (2.03 m) |
| Ground clearance | — | 1 ft (0.32 m) |
| Platform size (L*W*H) | — | 4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 |
| Lift capacity | — | 551 lbs (250 kg) |
| Turntable rotation | — | 355° |
| Platform rotation | — | 160° |
| Drive speed - stowed | — | 0～4.3 mph (0~7 km/h) |
| Drive speed - raised | — | 0～0.7 mph (0~1.1 km/h) |
| Gradeability | — | 30%(2WD) 40%(4WD) |
| Turning radius - inside | — | 5 ft 9 in (1.8 m) |
| Turning radius - outside | — | 14 ft 8 in (4.5 m) |
| Turntable tailswing | — | 0 ft (0 m) |
| Max. allowable slope | — | 3° |
| Drive & steer model | — | 2 WD * 2 WS / 4 WD * 2 WS |
| Tire size / type | — | 33*12 - 20 / solid |
Power
| Item | Unit | Value |
|---|---|---|
| Driving type | — | Hydraulic |
| Fuel tank capacity | — | 18.49 gal (70 L) |
| Control voltage | — | 12 VDC |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 15102 lbs (6850 kg) - 2WD15543 lbs (7050 kg) - 4WD |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
