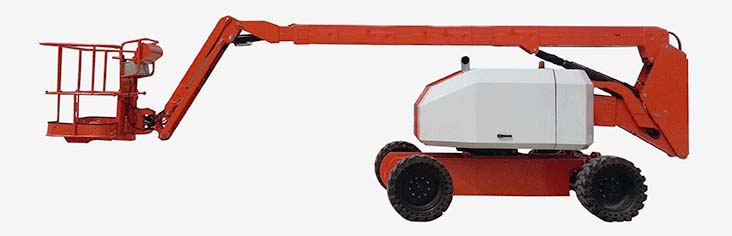

Articulated boom aerial working platform
CMQB18J
1. Wide operating range: 360° full direction operation at a height from 0~ 66 ft (20.4 m ), with a horizontal reach max. by 39 ft 7 in (12.1 m) and a crossing height of 26 ft (7.9 m). 2. Large load capacity: The lift capacity is 551 lbs (250 kg) ; the platform can hold two operat
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMQB18J |
| Power source | — | Original Cummins/Perkins Engine |
| Power | — | 45 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 60 ft (18.4 m) |
| Working height max. | — | 66 ft (20.4 m) |
| Horizontal reach max. | — | 39 ft 7 in (12.1 m) |
| Up and over clearance max. | — | 26 ft (7.9 m) |
| Length - stowed | — | 28 ft 2 in (8.6 m) |
| Width - stowed | — | 7 ft 5 in (2.28 m) |
| Height - stowed | — | 8 ft 3 in (2.54 m) |
| Wheelbase | — | 8 ft (2.44 m) |
| Ground clearance | — | 9 in (0.23 m) |
| Platform size (L*W*H) | — | 4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 |
| Lift capacity | — | 551 lbs (250 kg) |
| Turntable rotation | — | 360° continuous |
| Platform rotation | — | 160° |
| Driving speed - stowed | — | 0～3.8 mph (0~6.1 km/h) |
| Driving speed - raised | — | 0～0.7 mph (0~1.1 km/h) |
| Gradeability | — | 40% |
| Turning radius - inside | — | 11 ft 4 in (3.48 m) |
| Turning radius - outside | — | 20 ft 6 in (6.29 m) |
| Turntable tailswing | — | 8 in (0.2 m) |
| Max. allowable slope | — | 3° |
| Drive & steer model | — | 4 WD * 2 WS |
| Tire size / type | — | 33 * 12 - 20 / solid |
Power
| Item | Unit | Value |
|---|---|---|
| Driving type | — | Hydraulic |
| Fuel tank capacity | — | 29.06 gal (110 L) |
| Control voltage | — | 12 VDC |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 23149 lbs (10500 kg) |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
