Articulated boom aerial working platform

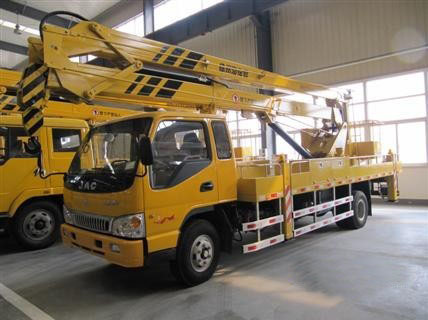

CM5112JGKA
Main Feature ： ● Electro-hydraulic proportional control, stepless throttle ● Control box at both turret and platform ● Equiped with jib to realize a larger working range ● Limit switch and alarm ● Large outrigger span, outrigger can be operate individually ● Emergency descent pow
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | XHZ5112JGKA |
| Chassis Model | — | HFC1121KR1T |
| Platform Safe Work Load | — | 300kg |
| Max. Work Height | — | 20.5m |
| Max. Work Range | — | 10.3m |
| Seating Capacity | — | 3 people |
| Dimension | — | 9250mm×2380mm×3520mm |
| Crane Max. Lift Weight | — | 3000 kg/5000kg(optional) |
| Crane Max. Lift Height | — | 13m |
