Articulated boom aerial working platform

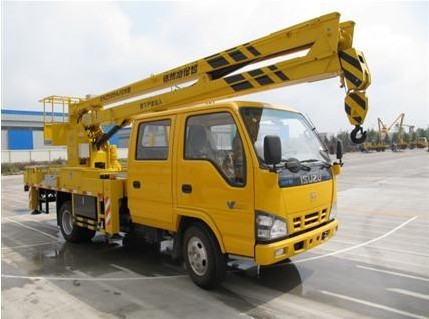

CM5054JGKB
Main Feature ： ● Electro-hydraulic proportional control, stepless throttle ● Control box at both turret and platform ● With a 2-section telescopic boom crane ● Limit switch and alarm ● Large outrigger span, outrigger can be operate individually ● Emergency descent power 。 ● Safet
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | — | XHZ5054JGKB |
| Chassis Model | — | NKR77LLLWCJAY |
| Platform Safe Work Load | — | 200kg |
| Max. Work Height | — | 14.3m |
| Max. Work Range | — | 6.3m |
| Dimension | — | 7170×1942×2858 mm |
| Crane Max. Lift Weight | — | 990kg /1300kg(optional) |
| Crane Max. Lift Height | — | 9.0 m |
