Aerial working platform

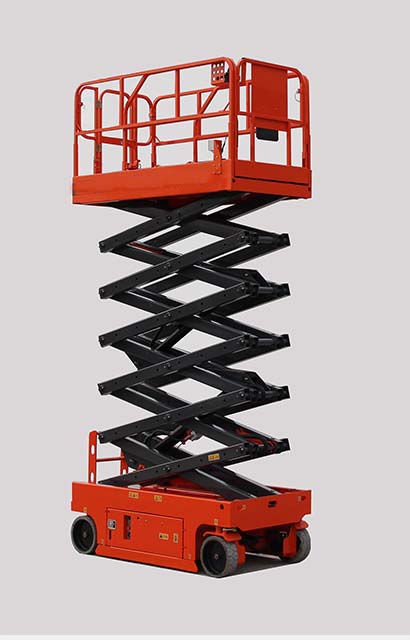

CMJC1212
1. Small turning radius: The outside turning radius of the tires is 7 ft 7 in (2.35 m) a nd the inside turning radius is 0 ft (0 m) . 2. Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMJC1212 |
| Power source | — | 24V DC (4*6V, 225Ah batteries) |
| Power | — | 3 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 39 ft (11.9 m) |
| Working height max. | — | 45 ft (13.9 m) |
| Platform extended | — | 3 ft (0.9 m) |
| Length - stower | — | 7 ft 8 in (2.39 m) |
| Width - stower | — | 3 ft 8 in (1.15 m) |
| Height - folding guardrails | — | 8 ft 5 in (2.6 m) |
| Height - rails folded | — | 6 ft 5 in (1.98 m) |
| Height - fixed rails | — | 8 ft 5 in (2.6 m) |
| Wheelbase | — | 6 ft (1.85 m) |
| Ground clearance | — | 3 in (0.1 m) |
| Platform size(L*W*H) | — | 7 ft 4 in*3 ft 8 in*3 ft 6 in (2.25 m*1.15 m*1.1 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 (indoor) 1 (outdoor) |
| Lift capacity | — | 705 lbs (320 kg) |
| Lift capacity - extension deck | — | 265 lbs (120 kg) |
| Drive speed - stowed | — | 0～2.0 mph (0~3.2 km/h) |
| Drive speed - raised | — | 0～0.5 mph (0~0.8 km/h) |
| Gradeability | — | 25% |
| Turning radius - inside | — | 0 ft (0 m) |
| Turning radius - outside | — | 7 ft 7 in (2.35 m) |
| Raise / Lower speed | — | 65 /47 s |
| Controls | — | Proportional |
| Drives | — | Dual front wheel |
| Brakes | — | Dual rear wheel |
| Tire size (solid non-marking) | — | 15 in * 5 in (380 mm * 125 mm) |
Power
| Item | Unit | Value |
|---|---|---|
| Hydraulic system capacity | — | 5.81 gal (22 L) |
Weight
| Item | Unit | Value |
|---|---|---|
| Indoor | — | 5765 lbs (2615 kg) |
| Indoor & outdoor general | — | 6393 lbs (2900 kg) |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
