Aerial working platform

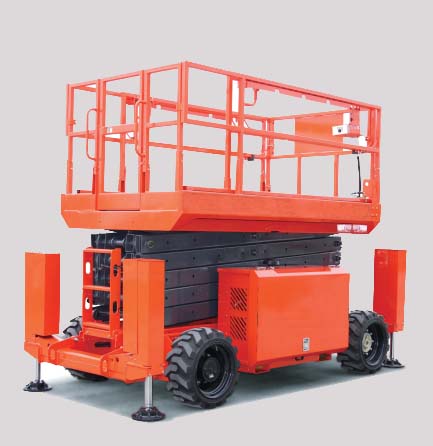

CMJC1018D
1. Small turning radius: The outside turning radius of the tires is 15 ft (4.6 m) and the inside turning radius is 6.9 ft (2.11 m) . 2. Large load capacity: The maximal load capacity reaches 992 lbs (450 kg) and the load capacity of the extended platform is up to 308 lbs (140 kg)
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMJC1018D |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 32.8 ft (10 m) |
| Working height max. | — | 39 ft (12 m) |
| Platform extended | — | 4.92 ft (1.5 m) |
| OverallLength | stowed,with outrigger/without | 12ft/10.8ft(3.77m/3.29m) |
| Overall width(stowed) | — | 5.77 ft (1.76 m) |
| Overall height(stowed,guardrail folded/unfolded) | — | 6.36 ft (1.94 m)/8.4ft(2.56m) |
| Wheelbase | — | 7.5 ft (2.286 m) |
| Ground Clearance | — | 0.72 ft (0.22 m) |
| Platform size (L*W*H) | — | 9.17 ft*5.24ft*3.6ft (2.795 m*1.6 m*1.1 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 4(indoor), 2(outdoor) |
| Lift capacity | — | 992 lbs (450 kg) |
| Lift capacity - extension outreach | — | 308 lbs (140 kg) |
| Driving speed - stowed | — | 0~5.6 km/h |
| Driving speed - raised | — | 0~0.48 km/h |
| Gradeability | — | 35% |
| Turning radius - inside | — | 6.9 ft (2.11 m) |
| Turning radius - outside | — | 15 ft (4.6 m) |
| Rising / Falling speed (without loading) | — | 34s~44s / 40s~45s |
| Drive&steer model | — | 4WD*2WS |
| Hydraulic system pressure | — | 24Mpa |
| Tire Size/type | — | 26*12-16.5/solid foam |
Power
| Item | Unit | Value |
|---|---|---|
| Control voltage | — | 12VDC |
| Hydraulic system tank vol. | — | 90 L |
| Fuel tank vol. | — | 48 L |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight(with outrigger/without) | — | 9061 lbs (4110 kg) / 8047 lbs (3650 kg) |
