Aerial working platform

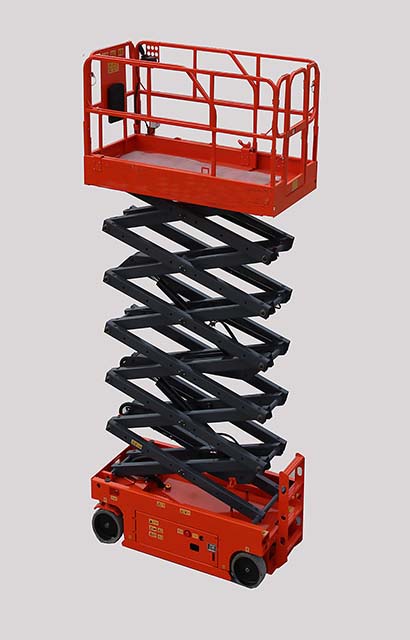

CMJC1412
1. Small turning radius: The outside turning radius of the tires is 8.4 ft (2.56 m) and the inside turning radius is 0 ft (0 m). 2. Large load capacity: The maximal load capacity reaches 500 lbs (227kg). 3. Sufficient electric power: Trojan batteries imported from USA are used, s
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMJC1412 |
| Power source | — | 24V DC (4*6V, 225Ah batteries) |
| Power | — | 4.5 KW |
| Weight — overall weight | indoor/outdoor | 6834 lbs (3100 kg) |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 45 ft (13.8 m) |
| Working height max. | — | 52 ft (15.8 m) |
| Platform extended | — | 3 ft (0.9 m) |
| Length - stowed | — | 9 ft (2.76 m) |
| Width - stowed | — | 4 ft (1.25 m) |
| Height - guardrail folded | — | 7.2 ft (2.20 m) |
| Height - guardrail unfolded | — | 8.53 ft (2.60 m) |
| Wheelbase | — | 7.3 ft (2.22 m) |
| Ground clearance | — | 0.33 ft (0.1 m) |
| Platform size (L*W*H) | — | 8.66 ft * 2.66 ft * 3.6 ft (2.64 m*0.81 m*1.1 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 (indoor), 1(outdoor) |
| Lift capacity | — | 500 lbs (227kg) |
| Driving speed - stowed | — | 0~3.2 km/h |
| Driving speed - raised | — | 0~0.8 km/h |
| Gradeability | — | 25% |
| Turning radius - inside | — | 0 ft (0 m) |
| Turning radius - outside | — | 8.4 ft (2.56 m) |
| Raising / Falling speed | — | 75s~85s /55s~63s |
| Controls | — | Proportional |
| Drive &steer model | — | 2WD, front -wheel |
| Brake | — | 2 rear-wheel |
| Tire | — | 380 mm * 125 mm/solid |
Power
| Item | Unit | Value |
|---|---|---|
| Hydraulic system tank vol. | — | 25 L |
Weight
| Item | Unit | Value |
|---|---|---|
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
