Aerial working platform

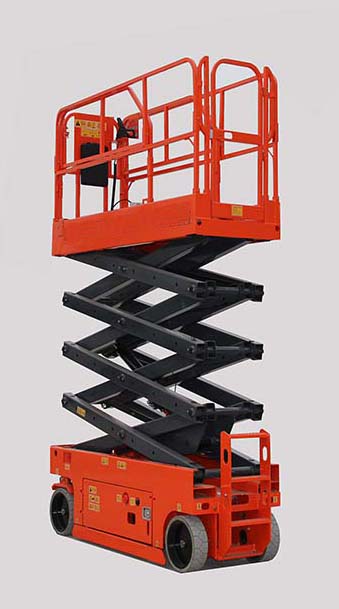

CMJC0612
1. Small turning radius: The outside turning radius of the tires is 7.7 ft (2.35 m) and the inside turning radius is 0.88 ft (0 m). 2. Large load capacity: The maximal load capacity reaches 1212 lbs (550 kg). 3. Sufficient electric power: Trojan batteries imported from USA are us
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMJC0612 |
| Power unit | — | 24VDC ,3 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 20.67 ft (6.3 m) |
| Working height max. | — | 27 ft (8.3 m) |
| Platform extended | — | 3 ft (0.9 m) |
| Length - stowed | — | 7.8 ft (2.39 m) |
| Width - stowed | — | 3.77 ft (1.15 m) |
| Height - stowed | — | 7.3 ft (2.22 m) |
| Wheelbase | — | 6.07 ft (1.85 m) |
| Ground Clearance | — | 0.33 ft in (0.1 m) |
| Platform size (L*W*H) | — | 7.4 ft*3.77 ft*3.6 ft (2.25 m*1.15 m*1.1 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2(indoor) 2(outdoor) |
| Lift capacity | — | 1212 lbs (550 kg) |
| Driving speed - stowed | — | 0~3.2 km/h |
| Driving speed - raised | — | 0~0.8 km/h |
| Gradeability | — | 25% |
| Turning radius - inside | — | 0 ft (0 m) |
| Turning radius - outside | — | 7.7 ft (2.35 m) |
| Raise / Lower speed | — | 25s~30s / 30s~35s |
| Controls | — | Proportional |
| Drive&steer model | — | 2WD, front-wheel |
| Brake | — | 2 rear wheel |
| Tire Size/type | — | 380*125mm/solid |
Power
| Item | Unit | Value |
|---|---|---|
| Battey | — | 6V*4/225Ah |
| Hydraulic system tank vol. | — | 18 L |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 4564 lbs (2070 kg) |
| StandardsCompliance | — | CE/ISO/ADR/ARAMCO |
