Aerial working platform

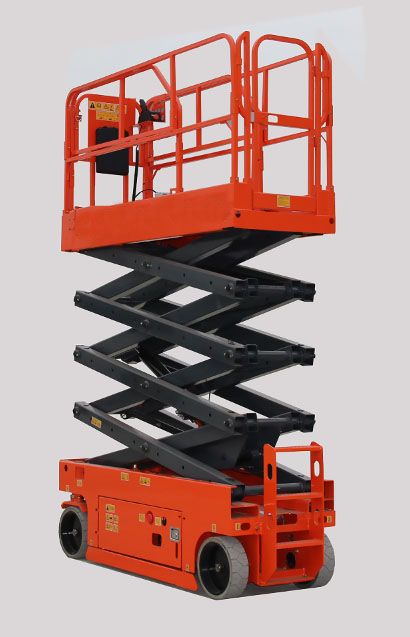

CMJC0608S
1. Small turning radius: The outside turning radius of the tires is 4 ft 9 in ( 1.48 m) and the inside turning radius is 0 ft (0 m). 2. Large load capacity: The maximal load capacity reaches 265 lbs (230 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg)
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMJC0608S |
| Power source | — | 24V DC (4*6V, 225Ah batteries) |
| Power | — | 3 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 19 ft (5.8 m) |
| Working height max. | — | 25 ft (7.8 m) |
| Platform extended | — | 3 ft (0.9 m) |
| Lengt - stowed | — | 5 ft 8 in (1.775 m) |
| Width - stowed | — | 2 ft 5 in (0.76 m) |
| Height- stowed | — | 6 ft 8 in (2.06 m) |
| Wheelbase | — | 4 ft 3 in (1.315 m) |
| Ground clearance | — | 3 in (0.07 m) |
| Platform size(L*W*H) | — | 5 ft 4 in*2 ft 5 in*3 ft 6 in (1.64 m*0.76 m*1.1 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 |
| Lift capacity | — | 507 lbs (230 kg) |
| Lift capacity - extension deck | — | 265 lbs (120 kg) |
| Driving speed - stowed | — | 0～2.5 mph (0~4 km/h) |
| Driving speed - raised | — | 0～0.5 mph (0~0.8 km/h) |
| Gradeability | — | 30% |
| Turning radius - inside | — | 0 ft (0 m) |
| Turning radius - outside | — | 4 ft 9 in (1.48 m) |
| Raise / Lower speed | — | 18/ 25 s |
| Controls | — | Proportional |
| Drives | — | Dual front wheel |
| Brakes | — | Dual rear wheel |
| Tire size (solid non-marking) | — | 12 in * 5 in (305 mm * 115 mm) |
Power
| Item | Unit | Value |
|---|---|---|
| Hydraulic system capacity | — | 4.76 gal (18 L) |
Weight
| Item | Unit | Value |
|---|---|---|
| Indoor | — | 2928 lbs (1328 kg) |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
