Aerial working platform

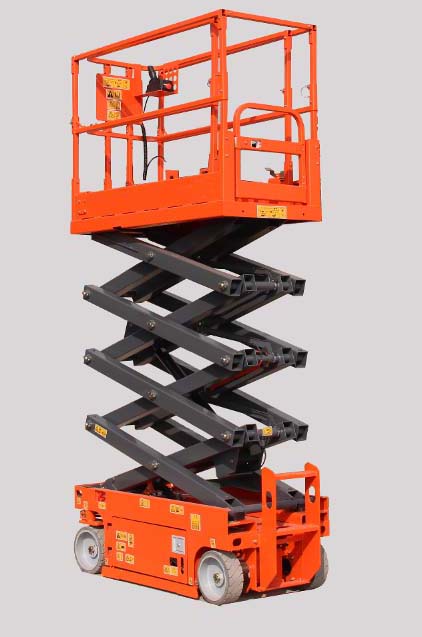

CMJC0608M
1. Small turning radius: The outside turning radius of the tires is 5.34ft (1.63 m) and the inside turning radius is 0.88 ft (0.27 m) 2. Large load capacity: The maximal load capacity reaches 507 lbs (230 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMJC0608M |
| Power unit | — | 24VDC ,3 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 19 ft (5.8 m) |
| Working height max. | — | 21 ft (7.8 m) |
| Platform extended | — | 3 ft (0.9 m) |
| Length - stowed | — | 5.84 ft (1.78 m) |
| Width - stowed | — | 2.65 ft (0.81 m) |
| Height - stowed | — | 6.92 ft (2.11 m) |
| Wheelbase | — | 4.31 ft (1.315 m) |
| Ground Clearance | — | 0.23 ft in (0.07 m) |
| Platform size (L*W*H) | — | 5.38ft*2.5ft*3.6ft (1.64 m*0.76 m*1.1 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2(indoor) 1(outdoor) |
| Lift capacity | — | 507 lbs (230 kg) |
| Lift capacity - extension deck | — | 265 lbs (120 kg) |
| Drive speed - stowed | — | 0~4 km/h |
| Drive speed - raised | — | 0~0.8 km/h |
| Gradeability | — | 25% |
| Turning radius - inside | — | 0.88 ft (0.27 m) |
| Turning radius - outside | — | 5.34ft (1.63 m) |
| Raise / Lower speed | — | 15s~20s / 25s~30s |
| Controls | — | Proportional |
| Drive&steer model | — | 2WD, front-wheel |
| Brake | — | 2 rear wheel |
| Tire Size/type | — | 305*115mm/solid |
Power
| Item | Unit | Value |
|---|---|---|
| Battey | — | 6V*4/225Ah |
| Hydraulic system tank vol. | — | 18 L |
Weight
| Item | Unit | Value |
|---|---|---|
| Overall weight | — | 3214 lbs (1458 kg) |
| StandardsCompliance | — | CE/ISO/ADR/ARAMCO |
