Aerial working platform

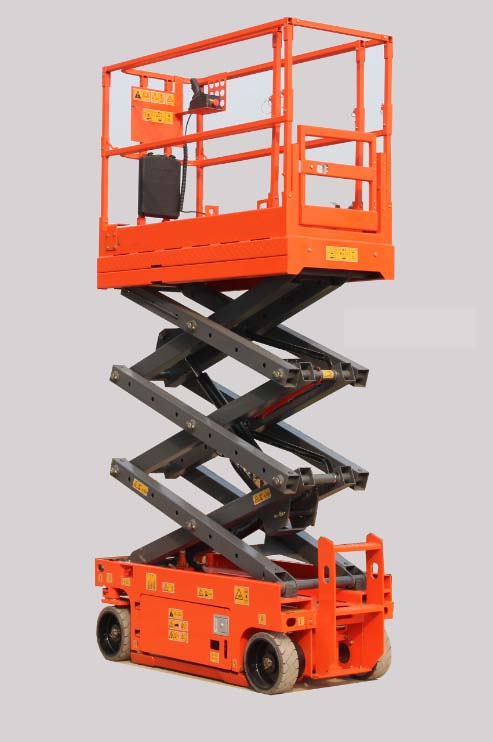

CMJC0408S
1.Power System：Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah(optional 260Ah ), 8h duration in normal operation. 2.Hydraulic System:Open type hydraulic system assembled with explosion-proof pipe unit and emergency descending swit
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMJC0408S |
| Power Source | — | 24V(4*6v，225Ah Batteries) |
| Power | — | 3 KW |
Dimensions
| Item | Unit | Value |
|---|---|---|
| Platform height max. | — | 15 ft (4.6 m) |
| Working height max. | — | 21 ft (6.6 m) |
| Platform extended | — | 3 ft (0.9 m) |
| Length - stowed | — | 5 ft 8 in (1.775 m) |
| Width - stowed | — | 2 ft 5 in (0.76 m) |
| Height - stowed | — | 6 ft 8 in (2.08 m) |
| Wheelbase | — | 4 ft 3 in (1.315 m) |
| Ground Clearance | — | 2 in (0.07 m) |
| Platform size (L*W*H) | — | 5 ft 4 in*2 ft 5 in*3 ft 6 in (1.64 m*0.76 m*1.1 m) |
Productivity
| Item | Unit | Value |
|---|---|---|
| Max. platform occupancy | — | 2 |
| Lift capacity | — | 617 lbs (280 kg) |
| Lift capacity - extension deck | — | 265 lbs (120 kg) |
| Drive speed - stowed | — | 0~2.5 mph (0~4 km/h) |
| Drive speed - raised | — | 0~0.5 mph (0~0.8 km/h) |
| Gradeability | — | 30% |
| Turning radius - inside | — | 0 ft (0 m) |
| Turning radius - outside | — | 4 ft 9 in (1.48 m) |
| Raise / Lower speed | — | 18/30 s |
| Controls | — | Proportional |
| Drives | — | Dual front wheel |
| Brakes | — | Dual rear wheel |
| Tire Size(Solid non-marking) | — | 12 in * 5 in (305 mm * 115 mm) |
Power
| Item | Unit | Value |
|---|---|---|
| Hydraulic system capacity | — | 4.76 gal (18 L) |
Weight
| Item | Unit | Value |
|---|---|---|
| Indoor | — | 2668 lbs (1210 kg) |
| Standards Compliance | — | CE/ ISO/ ADR/ ARAMCO |
