Aerial working platform

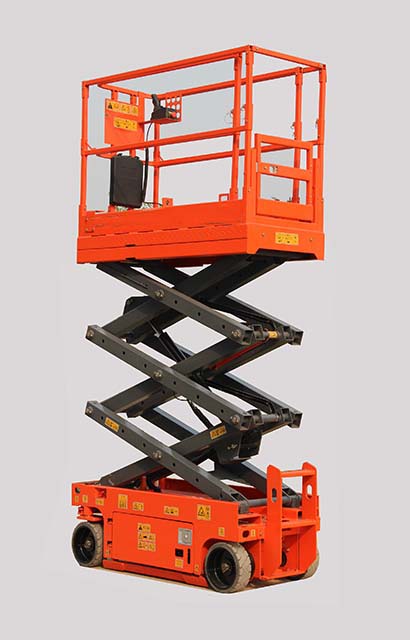

CMJC0408M
1.Power System：Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah(optional 260Ah ), 8h duration in normal operation. 2.Hydraulic System:Open type hydraulic system assembled with explosion-proof pipe unit and emergency descending swit
Parameters
| Item | Unit | Value |
|---|---|---|
| Models | — | CMJC0408M |
| Platform height max. | — | 15 ft (4.6 m) |
| Working height max. | — | 21 ft (6.6 m) |
| Platform extended | — | 3 ft (0.9 m) |
| Length - stowed | — | 5.84 ft (1.78 m) |
| Width - stowed | — | 2.65 ft (0.81 m) |
| Height - stowed | — | 6.89 ft (2.1 m) |
| Wheelbase | — | 4.31 ft (1.315 m) |
| Ground Clearance | — | 0.23 ft in (0.07 m) |
| Platform size (L*W*H) | — | 5.38ft*2.5ft*3.6ft (1.64 m*0.76 m*1.1 m) |
| Max. platform occupancy | — | 2(indoor) 1(outdoor) |
| Lift capacity | — | 617 lbs (280 kg) |
| Lift capacity - extension deck | — | 265 lbs (120 kg) |
| Drive speed - stowed | — | 0~4 km/h |
| Drive speed - raised | — | 0~0.8 km/h |
| Gradeability | — | 30% |
| Turning radius - inside | — | 0.88 ft (0.27 m) |
| Turning radius - outside | — | 5.34ft (1.63 m) |
| Raise / Lower speed | — | 15s~20s / 28s~33s |
| Controls | — | Proportional |
| Drive&steer model | — | 2WD, front-wheel |
| Brake | — | 2 rear wheel |
| Tire Size/type | — | 305*115mm/solid |
| Battey | — | 6V*4/225Ah |
| Hydraulic system tank vol. | — | 18 L |
| Power unit | — | 24VDC ,3 KW |
| Overall weight | — | 3573 lbs (1261 kg) |
| StandardsCompliance | — | CE/ISO/ADR/ARAMCO |
