Static compactor
3Y253J

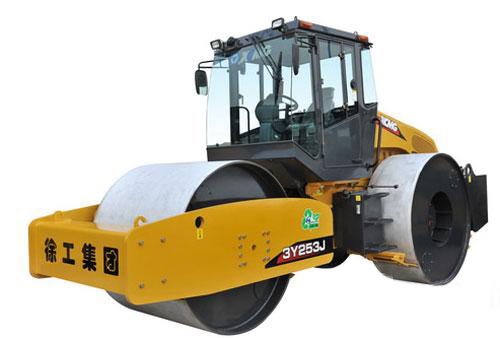

3Y253J — Static compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Work weight | kg | 21000 |
| Maximum working weight | kg | 25000 |
| Drive wheel mass distribution ratio | % | 70 |
| Drive wheel load (not loaded) | N/cm | 1110 |
| Drive wheel load (load) | N/cm | 1320 |
| Compaction width | mm | 2422 |
| Front wheel diameter | mm | 1600 |
| Rear wheel diameter | mm | 1700 |
| Overlap of front and rear wheels | mm | 100 |
| Theoretical climbing ability | % | 20 |
| Minimum turning radius | mm | 6500 |
| Working speed — I file | km/h | 2.6 |
| Working speed — II. | km/h | 5.07 |
| Working speed — 3rd | km/h | 10.73 |
| Working speed — R I file | km/h | 2.57 |
