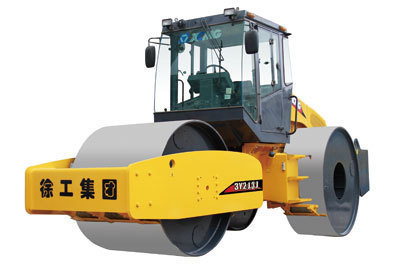

Static compactor
3Y213J
3Y213J — Static compactor. Professional construction equipment by CANMAX.
Parameters
| Item | Unit | Value |
|---|---|---|
| Model | Unit | 3Y213J |
| Operation weight | kg | 18000 |
| Max. operation weight | kg | 21000 |
| Rear wheel max. static load | N/cm | 1108 |
| Travel speed | — | km/h |
| Speed I | — | 2.5 |
| Speed II | — | 4.8 |
| Speed III | — | 10.3 |
| Reverse speed I | — | 2.4 |
| Reverse speed II | — | 4.7 |
| Theoretical gradeability | % | 20 |
| Min. external turning radius | mm | 6500 |
| Min. ground clearance | mm | 539 |
| Compaction width | mm | 2422 |
| Roller overlap amount | mm | 100 |
| Engine model | — | YC4B105Z-T21 |
| Type | — | Water cooling |
| Max. power @2200 r/min | kw | 75 |
| Overall length | mm | 6240 |
| Overall width | mm | 2422 |
| Overall height | mm | 3348 |
| Hydraulic oil tank capacity | L | 70 |
| Diesel oil tank capacity | L | 200 |
| Engine oil consumption | g.kW/h | 205 |
