Mobile welding station

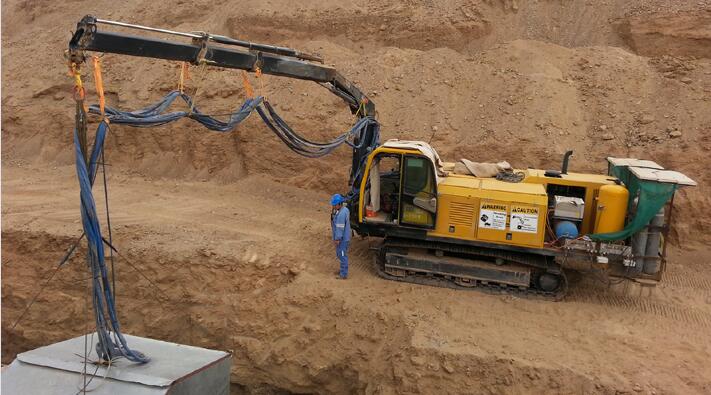

PMHY160
UNDERCARRIAGE l Hydrostatic driven gives enough power for traveling on even more grade slope of the job site. l Track counter rotation on the spot give more maneuverable operation of the tractor. l High ground clearance and low ground pressure allows working in any type of tough
Parameters
Crane
| Item | Unit | Value |
|---|---|---|
| Model | — | HIAB 111B-2 CLX |
| Max lifting capacity | — | 9.9t•m |
| Max reach distance | — | 7.8 m |
| Max lifting height | — | 10 m |
| Boom luffing Angle | — | —— |
| Boom rotation | — | 410° |
| Item | Unit | Value |
|---|---|---|
| Overall dimensions L*W*H | — | 6310×3000×3330(mm) |
| Operating weight | — | 13000kg |
| Ambient temperature | — | -20~40 |
| Length of track on ground | — | 3086 mm |
| Track gauge | — | 2150mm |
| Ground pressure | — | 34.2kPa |
| Maximum grade ability | — | 25° |
| Ground clearance | — | 570mm |
| Travel speed | — | low: 0～3.47km/h；high: 0～6.4km/h |
| Welder positions | — | 4~6 |
Engine
| Item | Unit | Value |
|---|---|---|
| Make | — | Cummins 6CTA8.3-C260 |
| Rated power/speed | — | 194kW@2200rpm |
Electric generator
| Item | Unit | Value |
|---|---|---|
| Rated capacity | — | 160kVA |
| Rated Voltage | — | AC 380/220V |
| Rated frequency | — | 50Hz |
Hydralic system
| Item | Unit | Value |
|---|---|---|
| Max pressure | — | 35Mpa |
| Max flow | — | 270L/min |
Electrical cabinet
| Item | Unit | Value |
|---|---|---|
| Power output | — | 380V×2，10kW in total；220V×2，2.2 kW in total |
