Mobile welding station

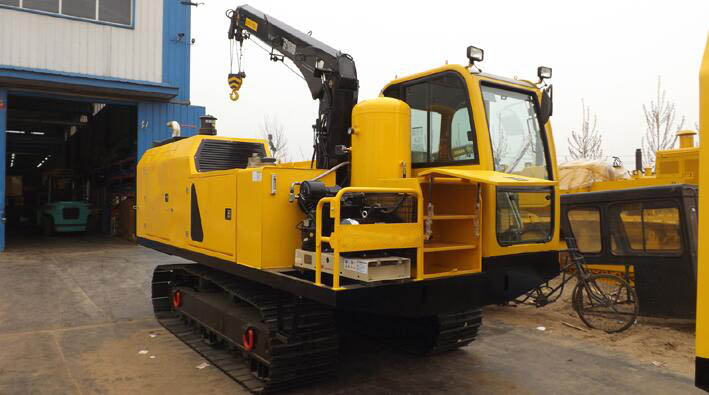

PMHY100
UNDERCARRIAGE l Hydrostatic driven gives enough power for traveling on even more grade slope of the job site. l Track counter rotation on the spot give more maneuverable operation of the tractor. l High ground clearance and low ground pressure allows working in any type of tough
Parameters
Engine
| Item | Unit | Value |
|---|---|---|
| Model | — | Cummins 6BTA5.9-C170 |
| Rated power/speed | — | 127kW/2000rpm |
| Item | Unit | Value |
|---|---|---|
| Overall dimensions L*W*H | — | 5150×2370×2955mm |
| Operating weight | — | 9625kg |
| Ambient temperature | — | -20~40 |
| Length of track on ground | — | 2755 mm |
| Track gauge | — | 1770mm |
| Ground pressure | — | 28.5 kPa |
| Maximum grade ability | — | 25° |
| Ground clearance | — | 570mm |
| Travel speed | — | low:0～2.5km/h high:0～4.0km/h |
| Welder positions | — | 2~4 |
Generator
| Item | Unit | Value |
|---|---|---|
| Rated capacity | — | 100kVA |
| Rated Voltage | — | AC 380/220V |
| Rated frequency | — | 50Hz |
Hydralic system
| Item | Unit | Value |
|---|---|---|
| Max pressure | — | 31Mpa |
| Max flow | — | 200L/min |
Electrical cabinet
| Item | Unit | Value |
|---|---|---|
| Power output | — | 380V×2，10kW in total；220V×2，2.2 kW in total |
Crane
| Item | Unit | Value |
|---|---|---|
| Max lifting capacity | — | 3200kg |
| Max reach distance | — | 7．8m |
| Max lifting height | — | 10m |
| Boom luffing Angle | — | 1～65°/1～80° |
| Boom rotation | — | 360° |
